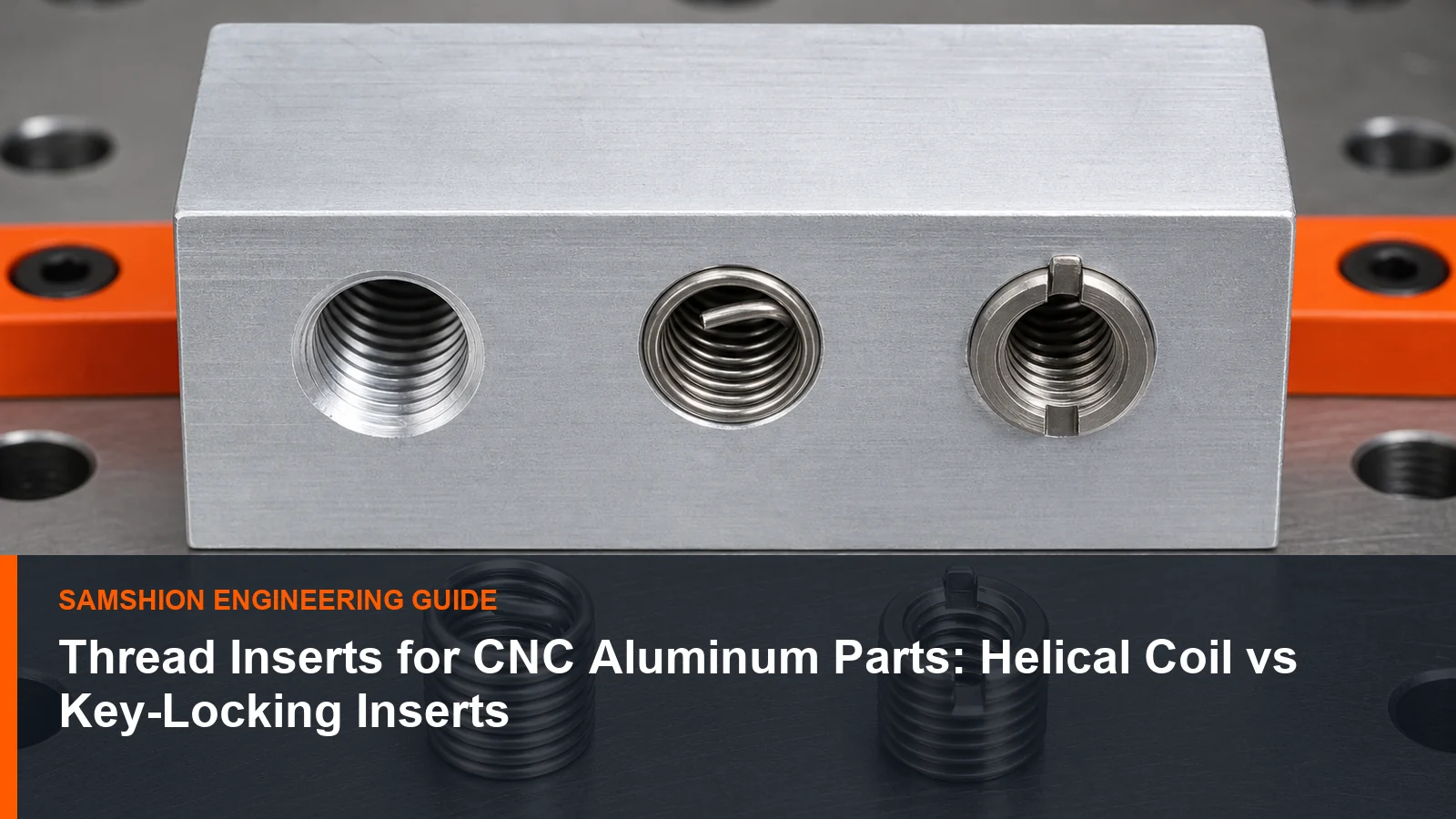

Aluminum threads may need reinforcement when the joint carries repeated assembly cycles, high clamp load or repair risk. The insert is part of the engineered joint, not an interchangeable afterthought.
Helical-wire inserts use little radial space and distribute load elastically. Solid key-locking inserts require a larger parent hole but provide a robust mechanical locking system. The surrounding boss, depth and application decide which is appropriate.
Scope, Search Intent and Technical Boundary
This article compares helical-wire and solid key-locking inserts in CNC aluminum parts. It does not duplicate the general threaded-hole process-selection article. For broader geometry and specification guidance, use the design for manufacturability guide alongside this feature-level discussion.
Use this guide to prepare an RFQ, review DFM comments and define acceptance evidence for thread inserts for CNC aluminum; it is not a universal capability promise.
Key Takeaways

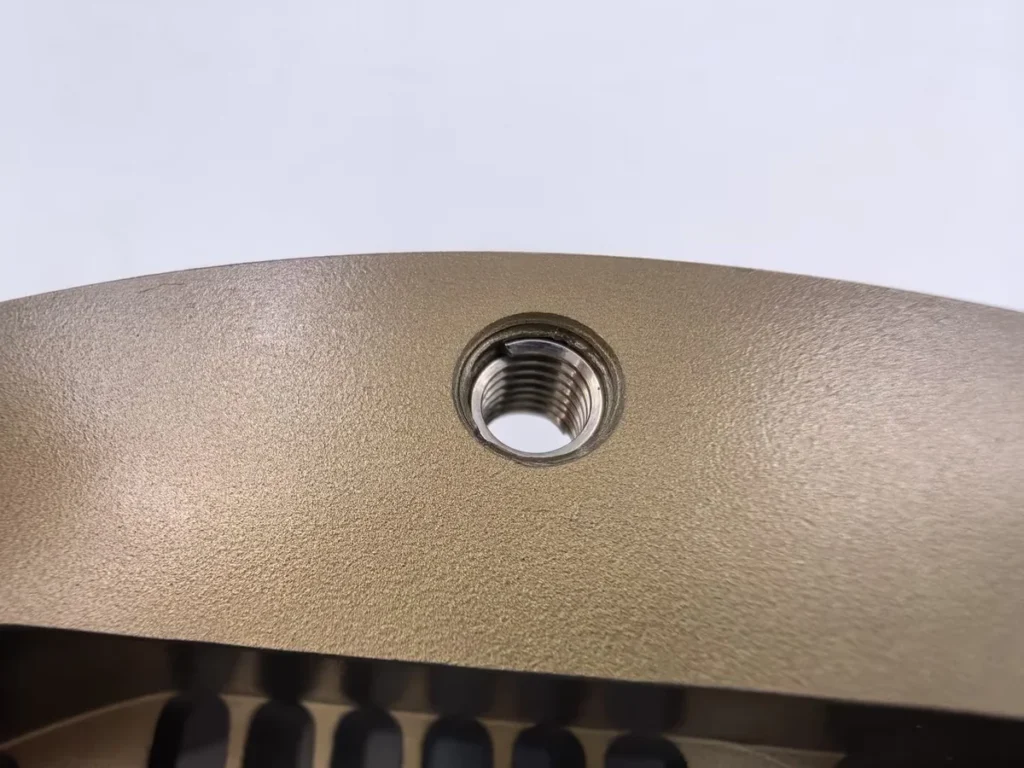

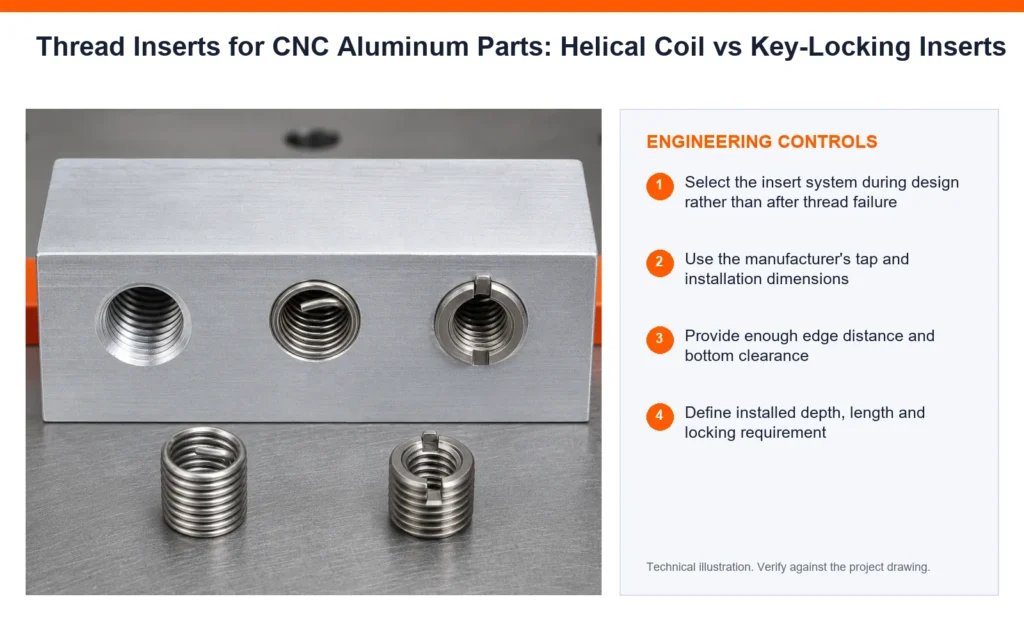

- Select the insert system during design, before the boss and hole are frozen.
- Follow the selected manufacturer’s parent-thread dimensions and tools.
- Provide enough edge distance and bottom clearance.
- Define installed depth, length and locking requirement.
- Inspect the parent thread and final installed condition according to risk.
Why Reinforce an Aluminum Thread
Repeated assembly, high-strength fasteners and field service can justify an insert, but not every tapped hole needs one. For the corresponding manufacturing decision and capability context, consult SAMSHION’s CNC threaded holes guide.
Helical-Wire Inserts
Wire inserts need a special parent thread and controlled installation depth. Free-running and locking styles serve different functions. Parent-thread dimensions, installation tools and insert variants must follow the selected system; the Bollhoff HELICOIL technical resource is one manufacturer reference for this insert family.
Solid Key-Locking Inserts
Solid inserts use more boss diameter and lock through driven keys. Nearby walls and passages must be reviewed.
Design the Boss and Blind-Hole Clearance
The outside thread, installation tool, tang or keys and chip removal all require space.
Installation and Inspection
Control parent-thread gauge result, insert depth, locking feature and the final internal thread. For the corresponding manufacturing decision and capability context, consult SAMSHION’s CNC production machining.
Engineering Variables to Confirm Before Quotation
Parent-alloy strength and wall thickness
For thread inserts for CNC aluminum, parent-alloy strength and wall thickness requires an explicit engineering decision. Connect this variable to the mating or sealing function it protects. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It may determine whether a flexible prototype route remains suitable for repeat production. If the customer cannot confirm it, state the working assumption and its commercial effect in writing.
Fastener size, clamp load and assembly cycles
For thread inserts for CNC aluminum, fastener size, clamp load and assembly cycles requires an explicit engineering decision. Reconcile the model, drawing and purchase specification at this point. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The decision can move a feature from a routine check to a controlled first-article characteristic. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity.
Helical free-running versus locking insert
For thread inserts for CNC aluminum, helical free-running versus locking insert requires an explicit engineering decision. Treat this as an RFQ input, not a shop-floor surprise. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. A different answer may require different stock, clamping pressure or inspection equipment. The review is complete only when production and inspection use the same definition. Available grades, stock forms and supplied conditions can be cross-checked against the materials guide before quotation.
Solid insert outside diameter and required boss size
For thread inserts for CNC aluminum, solid insert outside diameter and required boss size requires an explicit engineering decision. Treat this as an RFQ input, not a shop-floor surprise. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The decision can move a feature from a routine check to a controlled first-article characteristic. Keep the decision with the job record, because a verbal answer cannot control repeat work.
Installation tang or locking-key clearance
For thread inserts for CNC aluminum, installation tang or locking-key clearance requires an explicit engineering decision. Reconcile the model, drawing and purchase specification at this point. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It can alter support strategy, cutter access and the order of finishing operations. If the customer cannot confirm it, state the working assumption and its commercial effect in writing.
Corrosion, temperature and material compatibility
For thread inserts for CNC aluminum, corrosion, temperature and material compatibility requires an explicit engineering decision. Confirm the delivered-state requirement before estimating cycle time. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The result governs how much process evidence is needed to support the quotation. If the customer cannot confirm it, state the working assumption and its commercial effect in writing.
Failure Modes and Root-Cause Diagnosis
The boss is too small for the selected solid insert
A characteristic failure for thread inserts for CNC aluminum occurs when the boss is too small for the selected solid insert. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Inspect a first-off part both before and after the relevant secondary operation. Run the corrected first article through the same final-state acceptance route as production parts.
A helical insert is installed shallow, deep or with a damaged first coil
A characteristic failure for thread inserts for CNC aluminum occurs when a helical insert is installed shallow, deep or with a damaged first coil. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Repeat the measurement with a second suitable method before rewriting the machining program. Use the diagnosis to set a measurable control rather than a vague instruction to machine more carefully.
Locking keys break into a nearby thin wall or passage
A characteristic failure for thread inserts for CNC aluminum occurs when locking keys break into a nearby thin wall or passage. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Compare the blank, clamped part, released part and finished part to locate the stage where the error appears. If the cause remains uncertain, contain the lot and expand the trial before releasing more material.
The drawing specifies only the final thread and omits insert standard and length
A characteristic failure for thread inserts for CNC aluminum occurs when the drawing specifies only the final thread and omits insert standard and length. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Inspect a first-off part both before and after the relevant secondary operation. Update the setup sheet and inspection plan so the fix survives the next batch.
Process Controls for a Repeatable Result
Select the insert system during design rather than after thread failure
A process plan for thread inserts for CNC aluminum can control this risk by choosing to select the insert system during design rather than after thread failure. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Verify that the method remains stable after tool change, unclamping or finishing. Remove the control if trials show that it adds handling without reducing the targeted variation.
Use the manufacturer's tap and installation dimensions
A process plan for thread inserts for CNC aluminum can control this risk by choosing to use the manufacturer’s tap and installation dimensions. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Prove the control on the first article and retain the before-and-after evidence. A stable process is demonstrated by evidence across parts, not by one favorable measurement. The applicable production route and process controls are outlined in SAMSHION’s CNC machining services.
Provide enough edge distance and bottom clearance
A process plan for thread inserts for CNC aluminum can control this risk by choosing to provide enough edge distance and bottom clearance. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Pair the control with a measurable limit rather than a general workmanship instruction. The inspector must evaluate the same condition the operator is controlling.
Define installed depth, length and locking requirement
A process plan for thread inserts for CNC aluminum can control this risk by choosing to define installed depth, length and locking requirement. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Define the owner, frequency and record produced by the control. A stable process is demonstrated by evidence across parts, not by one favorable measurement.
Inspect the parent thread before installation where risk warrants
A process plan for thread inserts for CNC aluminum can control this risk by choosing to inspect the parent thread before installation where risk warrants. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Define the owner, frequency and record produced by the control. If it changes a controlled requirement, customer approval comes before production release.
Control tang removal and foreign-object risk for sensitive assemblies
A process plan for thread inserts for CNC aluminum can control this risk by choosing to control tang removal and foreign-object risk for sensitive assemblies. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Assign an operator check at the operation where the variable can still be corrected. Retain enough evidence to distinguish setup drift from material or tool variation.
Inspection Strategy and Acceptance Evidence
Parent-thread gauge result
Inspection of thread inserts for CNC aluminum should explicitly address parent-thread gauge result. First define the characteristic, datum reference and part condition represented by the result. Use a functional gauge when fit matters more than a single isolated coordinate. Identify whether each result is measured, visually verified or supported only by material documentation.
Insert installed depth and orientation
Inspection of thread inserts for CNC aluminum should explicitly address insert installed depth and orientation. First define the characteristic, datum reference and part condition represented by the result. Use a functional gauge when fit matters more than a single isolated coordinate. Keep the measurement program and fixture revision with the inspection record.
Locking-key seating or final coil condition
Inspection of thread inserts for CNC aluminum should explicitly address locking-key seating or final coil condition. First define the characteristic, datum reference and part condition represented by the result. Document any special support, low-force probe or environmental stabilization requirement. For variable geometry, show the measurement locations instead of reporting one unexplained value.
Final GO and NO-GO thread acceptance
Inspection of thread inserts for CNC aluminum should explicitly address final GO and NO-GO thread acceptance. First define the characteristic, datum reference and part condition represented by the result. Use a functional gauge when fit matters more than a single isolated coordinate. Keep the measurement program and fixture revision with the inspection record. The available verification and reporting workflow is summarized in SAMSHION’s quality assurance.
Visual confirmation that no tang or chip remains
Inspection of thread inserts for CNC aluminum should explicitly address visual confirmation that no tang or chip remains. First define the characteristic, datum reference and part condition represented by the result. Sample the locations and depths where process behavior can genuinely change. A decimal-rich output is not credible if the instrument cannot resolve the tolerance.
Cost, Lead Time and Quotation Transparency
Insert brand and standard
In a quotation for thread inserts for CNC aluminum, insert brand and standard can influence both lead time and total manufacturing cost. Secondary finishing and final-state inspection can make this more influential than raw cycle time. Compare flexible and dedicated production routes when order volume could justify either.
Installation tooling
In a quotation for thread inserts for CNC aluminum, installation tooling can influence both lead time and total manufacturing cost. Secondary finishing and final-state inspection can make this more influential than raw cycle time. State the assumed interpretation, included records and conditions that would trigger requotation.
100-percent visual or gauge inspection
In a quotation for thread inserts for CNC aluminum, 100-percent visual or gauge inspection can influence both lead time and total manufacturing cost. The cost can move from machining into inspection programming, gauging or documentation. Compare flexible and dedicated production routes when order volume could justify either.
Repair versus production installation
A Practical Engineering Review Sequence
Start with the function protected by parent-alloy strength and wall thickness. Mark the related datums, interfaces and delivered-state requirements on the controlled drawing. The manufacturing review can then choose stock, setups and cutting access around that function instead of treating every dimension as equally critical.
Walk through the likely failure mechanism represented by this project: the boss is too small for the selected solid insert. Decide which evidence can reveal the problem earliest and which operation can still correct it. This ordering avoids discovering a predictable condition only after finishing or final inspection.
Use the first article to validate the proposed control, including the instruction to select the insert system during design rather than after thread failure. The approval part must represent the intended material, fixture, program, secondary operations and measurement alignment. Feed the result back into the process record before releasing the balance of the order. Use the 6061 aluminum CNC machining guide to connect this decision with the wider manufacturing workflow.
RFQ and DFM Checklist
- Native 3D CAD model plus a controlled 2D drawing for tolerances and notes
- Exact material grade, condition, stock preference and certification requirement
- Functional datums, mating components and genuinely critical characteristics
- Quantity, prototype or production intent, and expected repeat-order status
- Surface finish, coating, heat treatment, cleaning and marking requirements
- Inspection report, certificate, gauge or sampling requirements
- Any approved alternative geometry or process constraints
Additional Engineering Review Notes
The project team should test whether its acceptance rule still makes sense after all secondary operations. For thread inserts for CNC aluminum, examine parent-alloy strength and wall thickness and ask how it could contribute to a condition in which a helical insert is installed shallow, deep or with a damaged first coil. One candidate action is to provide enough edge distance and bottom clearance; however, its value must be demonstrated through final GO and NO-GO thread acceptance. Compare the result with a second part, setup or tool-life interval before declaring a systemic cause. Also consider the commercial effect of insert brand and standard, because a technically sound route must be quoted with transparent assumptions. Escalate a trend at the warning limit instead of waiting for a rejected final result.
The project team should test whether its acceptance rule still makes sense after all secondary operations. For thread inserts for CNC aluminum, examine fastener size, clamp load and assembly cycles and ask how it could contribute to a condition in which locking keys break into a nearby thin wall or passage. One candidate action is to define installed depth, length and locking requirement; however, its value must be demonstrated through visual confirmation that no tang or chip remains. Retain a marked image or inspection trace so the team is discussing the same location. Also consider the commercial effect of installation tooling, because a technically sound route must be quoted with transparent assumptions. Use the first article to demonstrate the relationship between the action and the protected function.
For this feature family, compare the intended function with the easiest available measurement and resolve any mismatch. For thread inserts for CNC aluminum, examine helical free-running versus locking insert and ask how it could contribute to a condition in which the drawing specifies only the final thread and omits insert standard and length. One candidate action is to inspect the parent thread before installation where risk warrants; however, its value must be demonstrated through parent-thread gauge result. Identify which proposed cause would produce the observed direction and distribution of error. Also consider the commercial effect of 100-percent visual or gauge inspection, because a technically sound route must be quoted with transparent assumptions. Escalate a trend at the warning limit instead of waiting for a rejected final result.
The project team should test whether its acceptance rule still makes sense after all secondary operations. For thread inserts for CNC aluminum, examine solid insert outside diameter and required boss size and ask how it could contribute to a condition in which the boss is too small for the selected solid insert. One candidate action is to control tang removal and foreign-object risk for sensitive assemblies; however, its value must be demonstrated through insert installed depth and orientation. Distinguish a dimensional nonconformance from a measurement-access or datum-alignment problem. Also consider the commercial effect of repair versus production installation, because a technically sound route must be quoted with transparent assumptions. Keep the approved method connected to the fixture, program and inspection revision.
The project team should test whether its acceptance rule still makes sense after all secondary operations. For thread inserts for CNC aluminum, examine installation tang or locking-key clearance and ask how it could contribute to a condition in which a helical insert is installed shallow, deep or with a damaged first coil. One candidate action is to select the insert system during design rather than after thread failure; however, its value must be demonstrated through locking-key seating or final coil condition. Distinguish a dimensional nonconformance from a measurement-access or datum-alignment problem. Also consider the commercial effect of insert brand and standard, because a technically sound route must be quoted with transparent assumptions. The resulting instruction should name the operation, responsible role, limit and retained record.
Frequently Asked Questions
Are helical inserts only for thread repair?
No. They are widely used as planned thread reinforcement as well as repair components. Confirm the project-specific answer from the controlled drawing and the actual material condition.
Are key-locking inserts stronger in every design?
Not automatically. Parent material, boss size, load, insert series and installation quality all matter. Supplier and customer should agree the feature definition before production begins.
Can the final thread callout omit the insert standard?
That creates ambiguity. The insert family, size, length and locking style should be controlled. The general rule does not replace a feasibility review of the complete geometry and acceptance method.
Should the insert be installed before anodizing?
The sequence depends on finish, masking, electrical contact and dimensional requirements and must be agreed for the project. Final acceptance depends on the stated datum, delivered state and inspection approach.
Get an Engineering Review
Upload the CAD model and controlled drawing for an engineering review before production. When the model and drawing are ready, use request an insert-ready DFM review and include the material, quantity, finish and inspection requirements.
For a review of thread inserts for CNC aluminum, send the native CAD model, controlled drawing, material specification, quantity, finishing route and required acceptance records. SAMSHION’s engineering team can return project-specific DFM questions and documented quotation assumptions before production begins.
