Rapid Tooling Services | Accelerate Prototyping And Market Testing
When time-to-market is critical, rapid tooling bridges the gap between design validation and low-volume production. Our solutions enable Rapid Tooling Services and injection molding, delivering functional parts in days—not weeks—so you can test product viability, refine designs, and gauge market response with minimal risk.
Precision Rapid Tooling Solutions for Prototypes & Low-Volume Production
At Samshion, we leverage cutting-edge technology, engineering expertise, and customer-centric collaboration to deliver high-quality rapid tooling services for prototypes and short-run manufacturing. Our team partners closely with clients to craft tailored solutions that balance speed, cost, and precision—ensuring your project transitions seamlessly from concept to production.
Rapid Tooling Making
Accelerate your timeline with machined aluminum or mild steel molds designed for low-volume injection molding. Simplified designs, pre-engineered mold bases, and standardized components reduce lead times while maintaining durability for repeated cycles.
- Aluminum/steel molds for 100–10,000+ parts
- Streamlined design for faster turnaround
- Cost-effective tooling for iterative testing
Rapid Injection Molding
Execute small-batch production or functional prototyping with our dedicated fleet of injection molding machines. Molds are prioritized for immediate machine loading, minimizing downtime and ensuring rapid part delivery.
- On-demand runs for 50–5,000 units
- 15+ molding machines for flexible material options
- Tight tolerances (±0.1mm) and smooth finishes
Fast, Cost-Efficient Prototyping Solutions
What is Rapid Tooling?
Rapid tooling (RT) refers to injection molds produced in a fraction of the time required for conventional hard tooling — also called prototype tooling, bridge tooling, or soft tooling.
A critical bridge between prototype and production, rapid tooling encompasses injection molds, die-cast molds, sheet metal prototype tools, and custom jigs and fixtures — all built quickly and cost-effectively so you can mold your actual production resin for design validation, marketing samples, and short-run builds before committing to full-scale tooling.
Trial-producing hundreds to thousands of parts via rapid tooling before mass production is invaluable for design optimization, functional testing, and pre-production verification. Once the mold is complete, first molded parts can be delivered in as little as 5–7 days.
Rapid Tooling is also called
Prototype Tooling
Molds for design validation samples
Bridge Tooling
Parts while production mold is built
Soft Tooling
Aluminum or mild steel (vs hard steel)
Pilot Tooling
Pre-production verification runs
When Is Rapid Tooling the Right Choice?
Design Validation
When you need injection-molded parts in your exact production resin to verify fit, function, and assembly before committing to full production tooling. 3D-printed or machined prototypes cannot replicate true injection molding material properties.
Bridge Production
When you need production-grade parts to sell or fulfill orders while your hard production mold is still being built. Rapid tooling bridges the gap — sustaining revenue and preserving your launch schedule.
Market Testing
Launch a limited batch to gauge market response before committing to full production tooling. Catch and resolve design issues early, at a fraction of the cost.
Low-Volume Production
When annual volumes don't justify the investment in full production hard tooling. For many programs, a P20 bridge mold is all that's ever needed.
Precision Manufacturing Solutions | Quality, Speed, Expertise
Why Choose Samshion For Rapid Tooling?

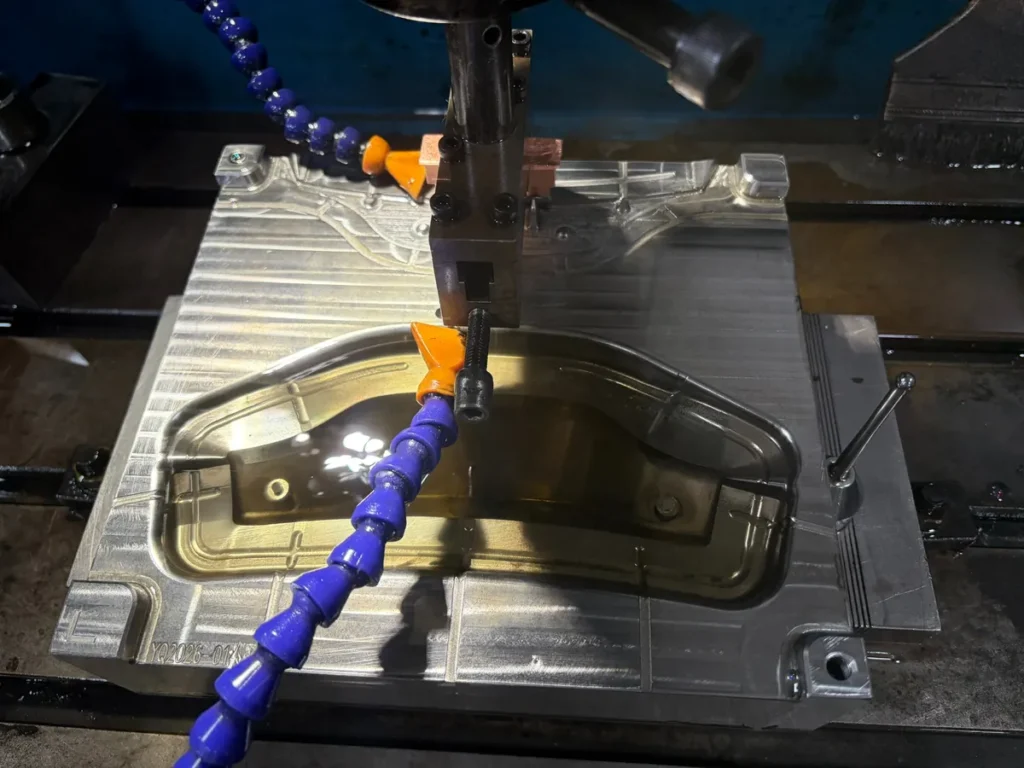

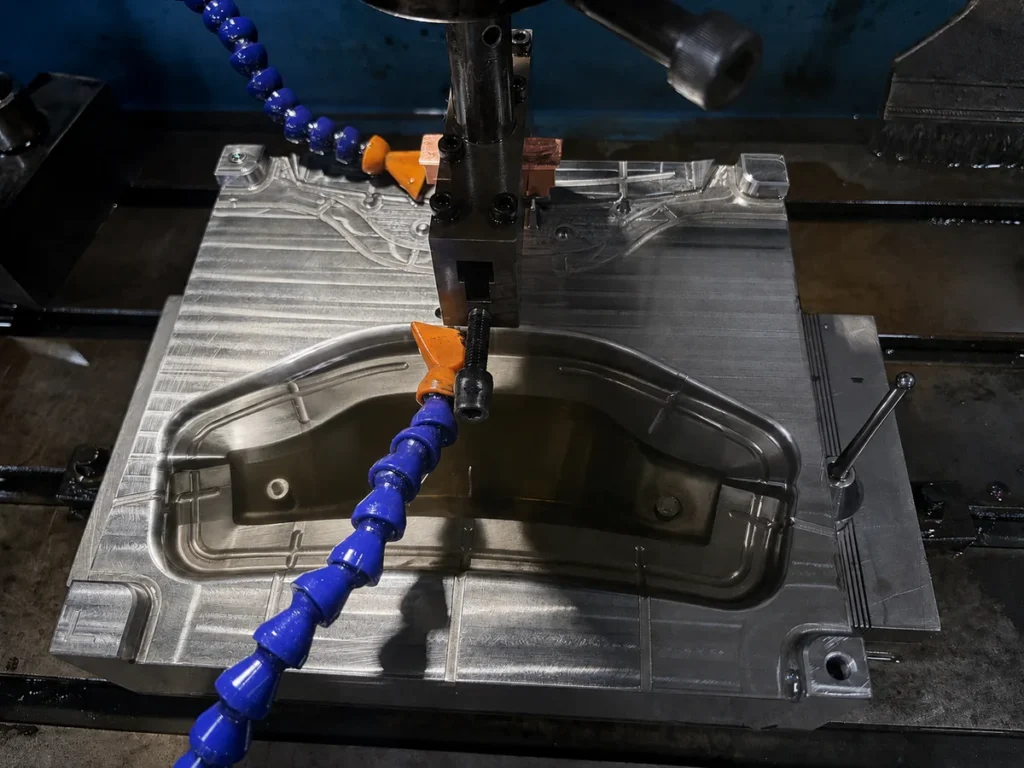

At Samshion, we bring together engineering expertise, advanced CNC and EDM machining, and over 20 years of mold-making experience to deliver high-quality rapid tooling for prototypes and short production runs.
We work closely with every client to build custom tooling that meets both technical and time-to-market requirements. Whether you need a simple aluminum prototype mold or a P20 bridge tool for pilot production, our team delivers injection-molded parts that closely replicate — or precisely match — end-use production quality.
High-Precision Components
Deliver flawlessly engineered parts with tolerances as tight as ±0.02mm. Our advanced quality systems and CNC-driven processes ensure dimensional accuracy and consistency, whether for prototypes or production runs.
- Micron-level precision for critical applications
- Material versatility: plastics, metals, and composites
- Surface finishes from textured to medical-grade polished
Fast-Track Production
Leverage our streamlined supply chain and in-house manufacturing facilities to slash lead times. From mold design to final parts, we prioritize agility without compromising quality—ideal for urgent prototyping or low-volume batches.
- Rapid tooling in 5–10 business days
- Low-volume runs shipped in 2–3 weeks
- Scalable solutions for seamless ramp-up
Engineering Support
Our team of engineers and designers partners with you to optimize manufacturability, reduce costs, and solve complex challenges. From DFM feedback to material selection, we ensure your project stays on track.
- Design-for-manufacturing (DFM) analysis
- Material and process optimization
- Post-processing and assembly guidance
Mold Material Options
We fabricate rapid tooling in aluminum for fast, low-cost prototyping and in tool steel for higher volumes and demanding applications. All molds follow SPI classification standards.

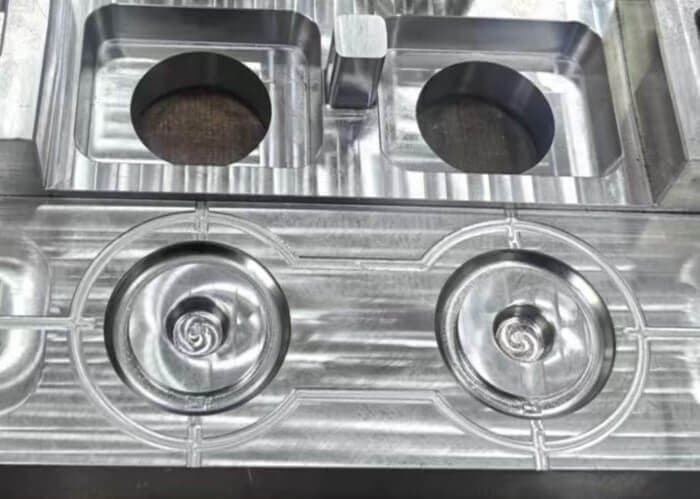

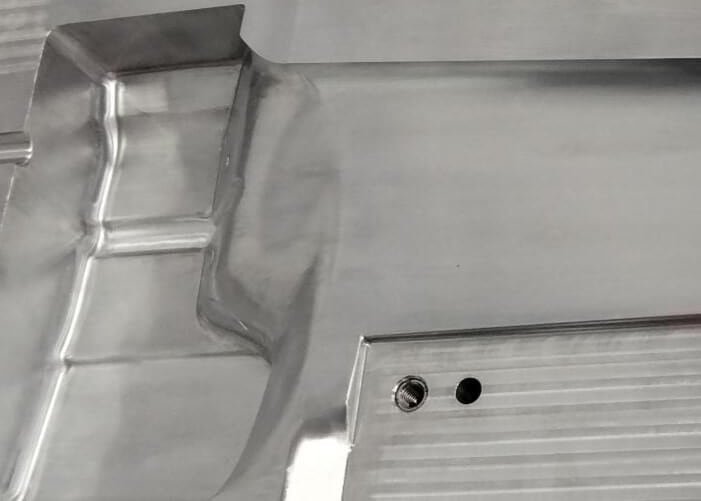

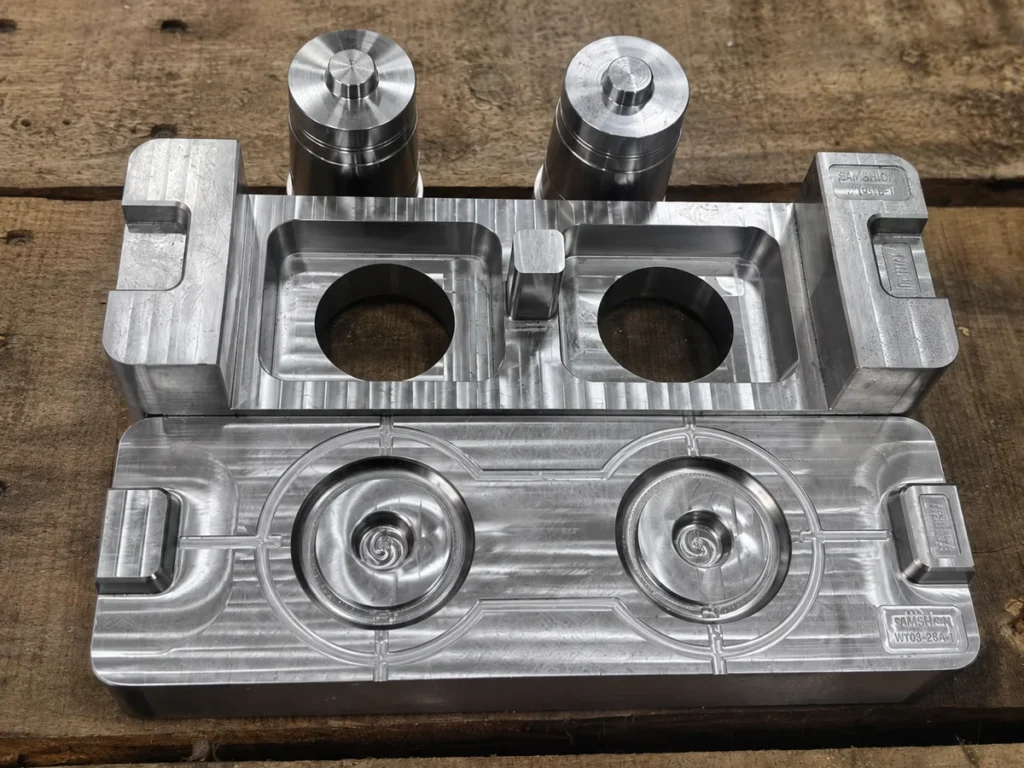

Aluminum Mold Tooling
High-performance aluminum alloys — primarily 7075-T6 and QC-10 — offer exceptional machinability and thermal conductivity, enabling molds to be built faster and at substantially lower cost than steel. Cavities and cores are CNC-machined from solid billet to tight tolerances.
Aluminum molds typically yield from several hundred to 10,000 identical injection-molded parts, making them ideal for prototype tooling, design validation, regulatory submission samples, and bridge production ahead of full-scale launch.
Advantages of Aluminum Tooling
- Significantly faster machining than steel — shorter lead time
- Lower tooling cost — typically 50–80% less than hardened steel
- Excellent heat transfer reduces injection cycle time
- All standard thermoplastics can be molded

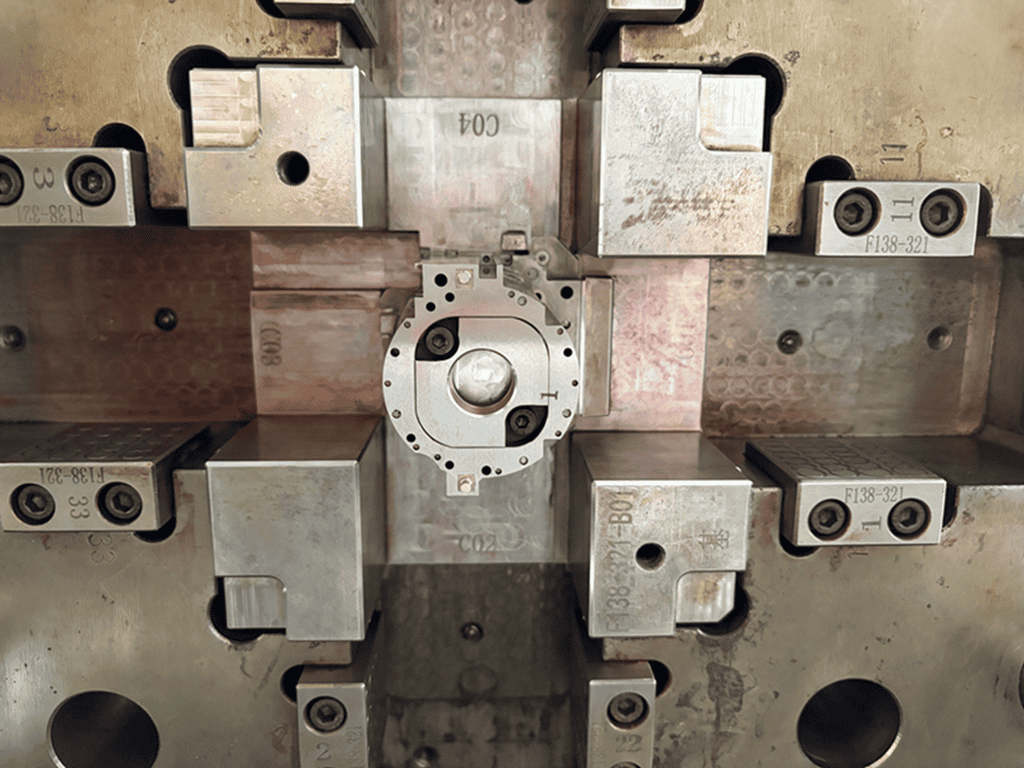

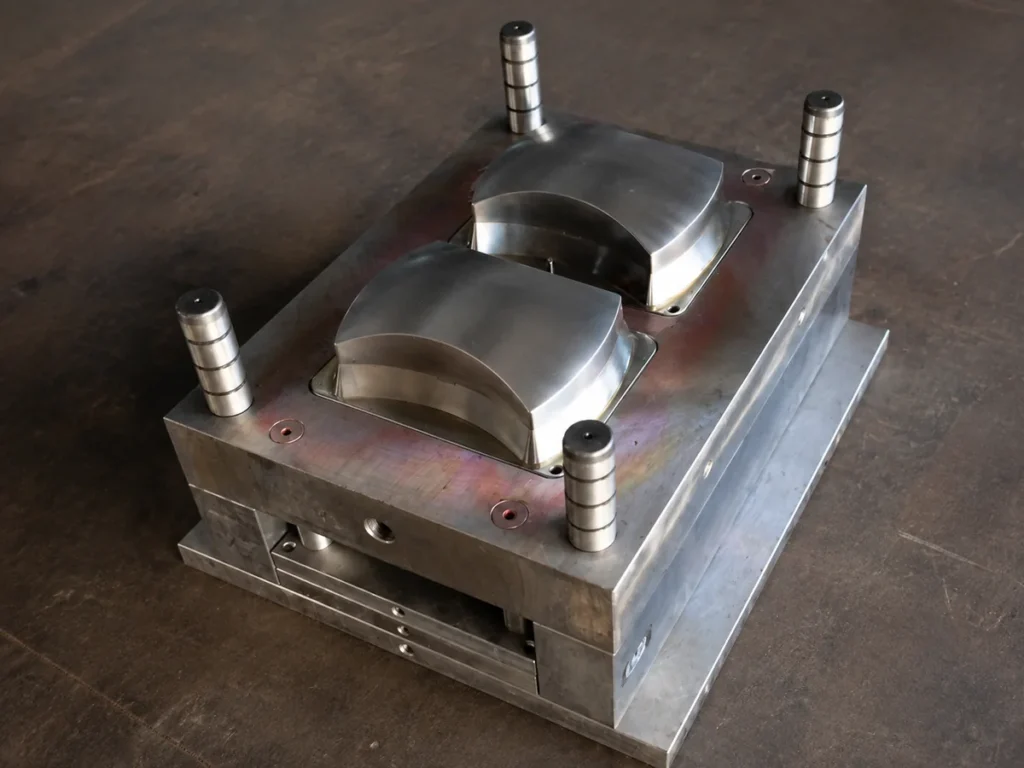

Steel Mold Tooling
Steel mold tooling is the definitive choice for higher-volume production and demanding applications. Superior hardness and durability translate to dramatically longer service life, and steel excels with engineering-grade plastics — particularly those requiring resistance to abrasion, corrosion, or elevated injection pressures.
We offer two steel grades: P20 pre-hardened steel for bridge and medium-volume tools, and H13 hardened steel for full production programs demanding 500,000+ shots.
Advantages of Steel Tooling
- Far longer tool life — 10,000 to 1,000,000+ shots
- Handles engineering resins: PA66-GF30, POM, PEEK
- Achieves true SPI A-series mirror finish
- Hydraulic side actions and hot runners available
Mold Type Comparison
| Factor | Aluminum Mold | P20 Steel Mold | H13 Production Mold |
| Lead Time | 7–10 days | 10–18 days | 18–35 days |
| Shot Life | Up to ~10,000 | 10,000–50,000 | 1,000,000+ |
| SPI A-series Finish | Not achievable | Achievable | Achievable |
| Glass-filled Resins | GF10–GF20 only | GF50 capable | All resins |
| Best For | Prototyping · Validation | Bridge · Pilot production | Full volume production |
Injection Molding Materials
Completed rapid molds can process a wide range of thermoplastics and elastomers — from commodity ABS and PP to engineering resins like PA66 and POM. Nearly any standard thermoplastic is supported; resin shrinkage data is verified during DFM review.

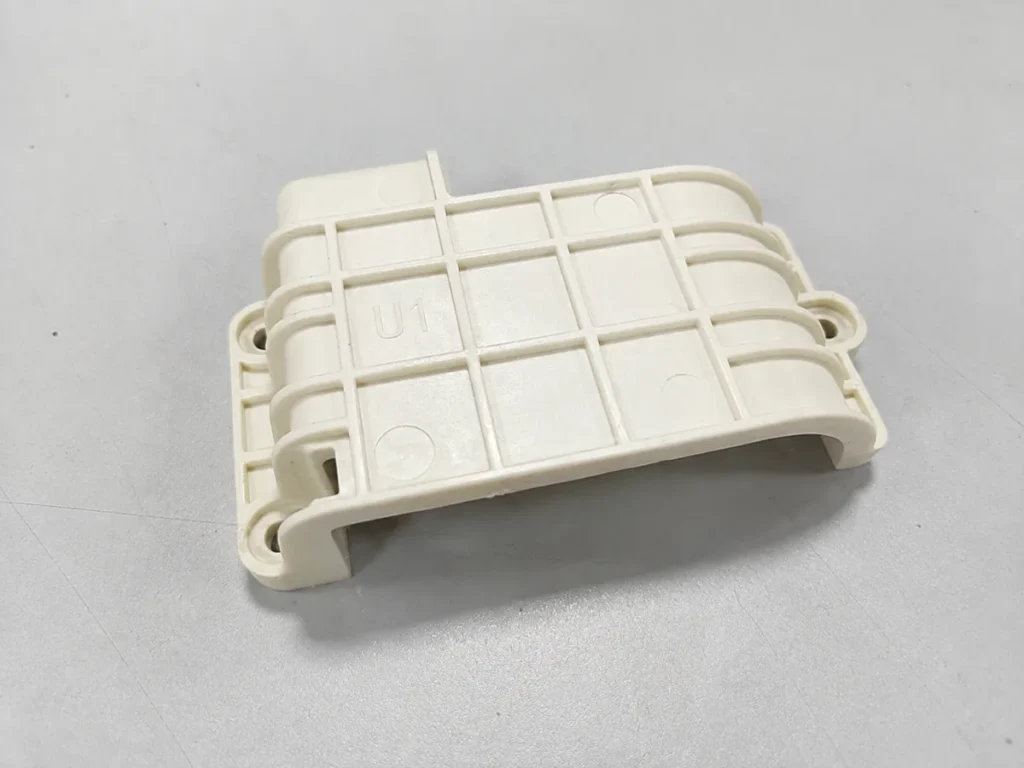

- ABS
- Polypropylene (PP)
- Polycarbonate (PC)
- PC / ABS Blend
- Nylon PA6 / PA66
- PA66-GF30
- TPE / TPU

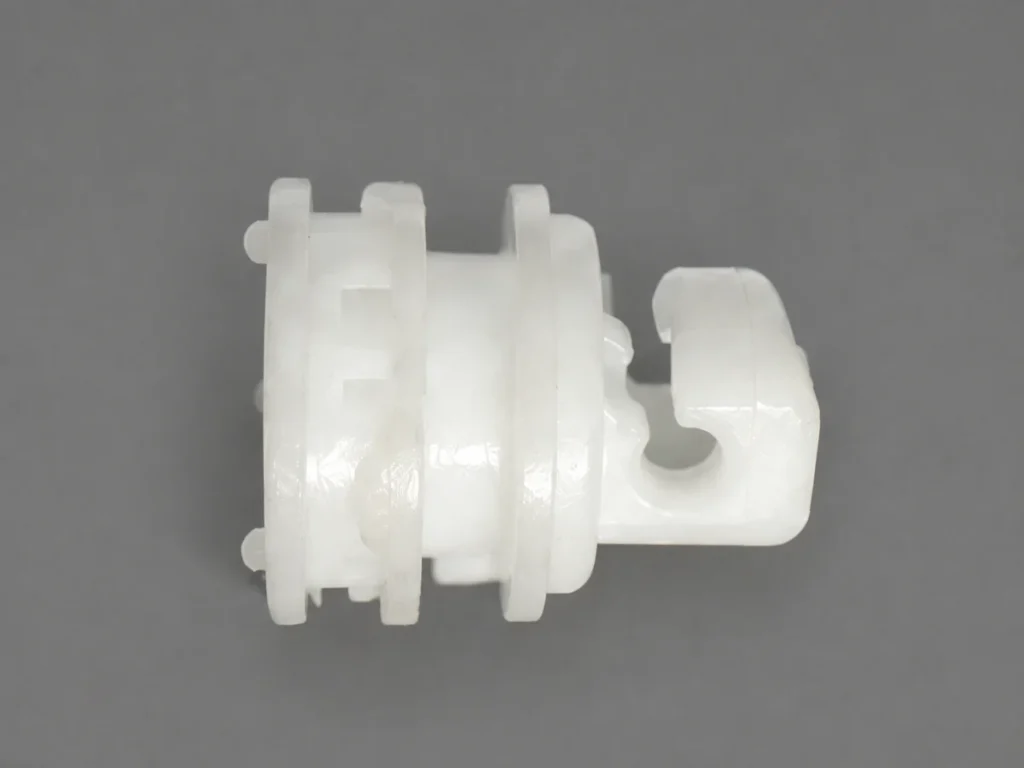

- POM (Acetal)
- HDPE / LDPE
- PEEK / PEI
Design Tips for Rapid Tooling
Effective rapid tooling design requires balancing speed, cost, and part quality against the mold’s required service life. While rapid molds are built far faster than conventional tools, they demand the same design disciplines — proper draft, uniform walls, and well-placed gates — to deliver precise, consistent parts.
Our engineers provide a free written DFM (Design for Manufacturability) review with every quote — addressing all of the points below and delivering specific recommendations within 24 hours.
Draft Angles
All vertical walls must have draft angles of at least 1–3° to allow the part to eject cleanly from the mold without drag marks. For textured surfaces, minimum 3–5° draft is required. Our DFM review flags all non-drafted walls.
Uniform Wall Thickness
Vary wall thickness as little as possible. Sudden thickness changes cause sink marks, warpage, and incomplete fill. Target 2–4mm walls for most resins. Ribbing is preferred over thick sections.
Cooling Channels
Our engineers optimize cooling channel layout to minimize cycle time and prevent warpage — especially critical in aluminum molds, where the material's thermal conductivity advantage is only fully realized with well-designed channel placement.
Simplify Geometry
Undercuts require side-action mechanisms that add cost and lead time. Wherever feasible, features should be redesigned for straight-pull ejection. Our DFM review identifies specific geometry changes to eliminate unnecessary complexity.

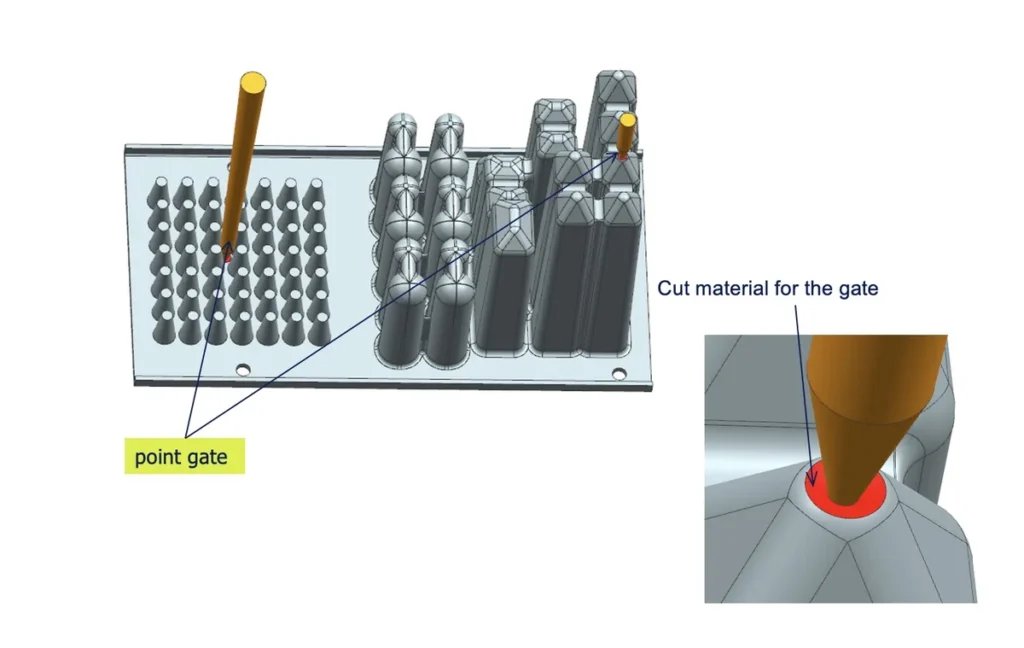

Gate Location
Gate placement affects fill pattern, knit line location, and surface appearance. Our engineers recommend optimal gate type (edge, tunnel, hot tip) and location as part of the DFM review.
Mold Shrinkage
There is no way to fully avoid plastic shrinkage, only ways to reduce and stabilize it. Here are key control methods: 1.Calculate accurate shrinkage factor when designing. 2.Optimize gate and runner design. 3.Adjust injection parameters. 4.Control consistent mold temperature and cooling speed. 5.Optimize product wall thickness.
Advantages of Rapid Tooling
Accelerated Timelines
Rapid tooling slashes production lead times, enabling seamless transitions from prototyping to low-volume manufacturing. Achieve functional parts in days—not weeks—to meet tight deadlines.
Ready to Harness Rapid Tooling Benefits?
Cost-Effective Scaling
Optimize budgets for orders of 100–5,000 units. Avoid overinvestment in mass-production molds or costly alternatives like CNC machining for mid-sized batches.
Broad Material Compatibility
Leverage the same material options as traditional injection molding—from ABS and nylon to engineering-grade polymers—ensuring performance aligns with final product requirements.
Custom Surface Finishes
Tailor part aesthetics with molds designed for smooth, textured, or glossy finishes. Post-processing options like painting, plating, or laser etching add further customization.
Budget-Friendly Solutions
Reduce upfront tooling costs by up to 70% compared to hardened steel molds, maximizing ROI for small-to-medium production runs.
Design Validation & Iteration
Test functionality, durability, and user ergonomics with real-world prototypes. Implement design tweaks swiftly through modular mold adjustments.
Faster Market Entry
Compress development cycles and launch products ahead of competitors. Rapid tooling ensures speed without sacrificing quality or precision.
Frequently Asked Questions
What is the difference between rapid tooling and 3D printing?
3D printing (SLA, FDM, SLS) cannot replicate injection molding material properties — the parts have different internal structure, anisotropic strength, and altered surface characteristics. Rapid tooling produces genuine injection-molded components in your exact production resin, at real molding temperature and pressure. That is the only way to obtain valid mechanical data for regulatory testing, customer submission, and engineering sign-off.
How many parts can I get from an aluminum rapid mold?
A well-maintained aluminum mold (typically 7075-T6) can yield from several hundred to approximately 10,000 identical parts, depending on geometry, wall thickness, and resin. Simple parts molded in non-abrasive resins such as ABS or PP reach the upper end of that range. Beyond ~10,000 units, we recommend transitioning to a P20 steel bridge mold.
Can aluminum molds achieve SPI A-grade mirror finish?
No — and this distinction matters. Aluminum can be polished to look glossy, but soft tooling materials cannot hold a mirror surface through repeated injection cycles; cavity degradation under molding pressure begins quickly. A genuine SPI A-1 or A-2 finish requires special hardened steel — typically 420SS (S136) with a fine grain structure — hand-lapped by experienced polishing specialists. Always declare your surface finish requirement in the RFQ before mold design begins.
What is bridge tooling and when should I use it?
Bridge tooling uses a rapid aluminum or P20 mold to produce production-grade parts while your full hard production mold is being built — literally bridging the gap between prototype approval and mass production. It is the right call when you need to fulfill early customer orders, complete regulatory submissions, generate revenue, or simply avoid a months-long inventory gap. Bridge production runs typically range from 200 to 5,000 parts.
What documentation do I receive with T1 samples?
Every T1 delivery includes:
(1) injection-molded parts in your specified resin and color;
(2) a First Article Inspection (FAI) report covering all critical dimensions against nominal CAD, signed by a QA engineer;
(3) a cosmetic review report noting surface finish, gate marks, parting lines, and ejector marks; and
(4) a mold condition report. The DFM report issued before tooling begins is also included in the complete project documentation package.
Can you mold glass-filled resins in aluminum rapid molds?
Resins up to GF15 can be run in aluminum molds with care, but glass fill accelerates cavity wear. GF20 and above will shorten aluminum mold life noticeably. We recommend P20 for any glass content above 20%, and H13 for GF30+ at any significant volume. Carbon-fiber-filled resins should always use P20 or H13. Our DFM review automatically flags this and specifies the correct mold material.
