In the field of plastic molding manufacturing, mold selection— as a core production equipment— directly determines product development cycles, production costs, and market competitiveness. Rapid Mold and Production Mold, as two mainstream solutions, correspond to the needs of different product life cycles respectively. Samshion will conduct a professional analysis from the perspectives of technical essence, key difference dimensions, and application scenarios to provide reference for customer decision-making.
Core Definitions and Design Philosophies
Rapid Mold
Also known as “soft mold” or “prototype mold”, Rapid Mold is a low-cost, short-cycle mold built based on rapid manufacturing technologies (such as CNC machining, 3D printing, and vacuum casting). Its core design philosophy is “rapid response”, aiming to achieve product prototype verification and small-batch delivery in the shortest time. Core objectives include : verifying design feasibility, testing product functions, seizing market windows, and controlling early-stage development risks.
Production Mold
Also referred to as “hard mold” or “production-grade mold”, Production Mold is a high-precision mold designed for large-scale, long-term stable production. With “large-scale efficiency” as its core design philosophy, it emphasizes mold durability, dimensional stability, and production efficiency. It needs to meet the requirements of hundreds of thousands to millions of molding cycles and serves as the core equipment for mass production after product finalization.
In-depth Analysis of Key Difference Dimensions
Material Selection and Process Characteristics
Rapid Mold prioritizes easily processable and low-cost materials. Mainstream options include aluminum alloys (6061, 7075), pre-hardened steel (P20, NAK80), epoxy resin, and 3D-printed composite materials. The process simplifies workflows without complex heat treatment, relying on technologies such as CNC rapid milling and vacuum casting, which can shorten the processing cycle by 40%-60%.
Production Mold adopts high-strength mold steel (H13, S136, SKD61), which undergoes strengthening treatments like quenching and nitriding, with hardness reaching HRC48-54 or higher. The process includes multiple precision procedures such as precision grinding, EDM (Electrical Discharge Machining), and polishing. Some complex molds also require the design of conformal cooling systems and insert structures to ensure long-term production stability.
Cycle and Cost Structure
A core advantage of Rapid Mold is its short cycle. Delivery time for standard-structure molds is only 3-15 days, and no more than 3 weeks for complex structures. In terms of cost, the initial investment is low— only 30%-60% of that of Production Mold— but the unit product cost rises rapidly with increased output, making it suitable for small-batch production.
Production Mold has a longer development cycle: 20-45 days for ordinary molds and even more than 60 days for precision molds. The initial investment is high, with mold costs accounting for 30%-50% of the total product cost. However, the unit cost decreases significantly with increased output, demonstrating obvious cost-effectiveness advantages in large-scale production.
Service Life and Production Capacity
Rapid Mold has a limited service life: aluminum alloy molds can reach 1,000-20,000 cycles, while silicone molds can only withstand 20-100 cycles. It is mainly suitable for small-batch production of 50-5,000 units. Due to material hardness limitations, long-term production is prone to cavity wear, dimensional drift, and other issues.
Production Mold has a service life of 500,000-5,000,000 cycles, and high-specification steel molds can even exceed 10 million cycles. In mass production, it can maintain stable dimensional accuracy (tolerance within ±0.05mm) and surface quality, supporting multi-cavity mold design, which improves production efficiency by 3-5 times.
Precision and Design Flexibility
Rapid Mold’s precision meets the needs of prototype verification, with dimensional tolerance usually ±0.1mm. Surface quality requires post-processing (such as grinding and painting) to reach higher standards. It offers high design flexibility— modifying mold structures (such as adjusting gates and optimizing cavities) involves low cost and short cycles, making it suitable for the product iteration stage.
Production Mold achieves higher precision, with key dimensional tolerance controllable within ±0.005mm, supporting high-precision surface treatments like mirror polishing and texture etching. However, modifying the design after finalization is difficult, requiring reprocessing of cavities or replacement of inserts, which is costly and time-consuming.
Application Scenarios and Selection Strategies
Typical Applications of Rapid Mold
– Early product development: Design verification, functional testing, and assembly compatibility inspection;
– Marketing: Exhibition samples, e-commerce small-batch orders, and pilot sales;
– Emergency needs: Epidemic supplies, customized products, and short-term supplementary orders;
– Industry cases: Medical device prototypes, consumer electronics housing trial production, and automotive interior part verification.
Typical Applications of Production Mold
– After product finalization: Large-scale mass production (annual output of over 100,000 units);
– High-demand scenarios: Auto parts, home appliance housings, medical consumables, and other products requiring high precision and stability;
– Long-term cooperation: Standardized products with a long life cycle (1-5 years); – Industry cases: Mass production of mobile phone middle frames, air conditioner housings, and medical device enclosures.

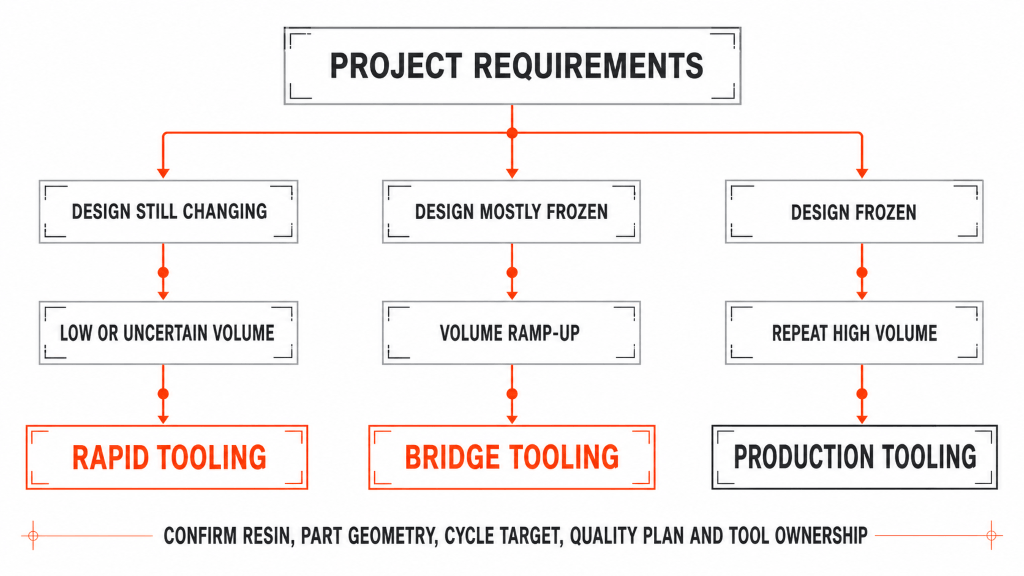

Three Principles for Scientific Selection
1. Output threshold: Prioritize Rapid Mold for demand ≤5,000 units; Production Mold is mandatory for demand ≥100,000 units;
2. Cost balance: When initial budget is limited or the product is not finalized, use Rapid Mold for trial production first, then switch to Production Mold after finalization;
3. Risk control: For innovative products or uncertain market demand, Samshion would suggest using Rapid Mold to reduce trial-and-error costs and avoid investment risks in Production Mold.
Conclusion
Rapid Mold and Production Mold are not substitutes but complementary solutions in the product development process. Rapid Mold, with its core advantages of “speed, cost-effectiveness, and flexibility”, addresses the needs of early product verification and small-batch delivery. Production Mold, with its core values of “stability, durability, and precision”, supports large-scale efficient production. Enterprises need to make comprehensive decisions based on the product life cycle, output requirements, and cost budget. When necessary, a phased strategy of “Rapid Mold for trial production + Production Mold for mass production” can be adopted to achieve the optimal balance between development efficiency and production costs.
With the development of 3D printing and intelligent processing technologies, the precision and service life of Rapid Mold continue to improve, while the development cycle of Production Mold is shortening— blurring the boundaries between the two. However, the core difference still lies in the trade-off between “speed” and “scale”. Samshion will help our customers accurately grasping this core logic is crucial to selecting the right mold solution and enhancing product competitiveness.
