5-Axis CNC Machining Services for Complex Custom Parts
Manufacture multi-sided features, angled holes, deep cavities and complex contoured surfaces with fewer manual repositioning steps. Samshion supports rapid prototypes, low-volume batches and repeat production using the 5-axis strategy that fits the geometry: indexed 3+2 machining or simultaneous 5-axis motion.
- 3+2 and simultaneous 5-axis routes
- Metals and engineering plastics
- Prototype through repeat production
- DFM and inspection planning before machining
- All uploads are secure and confidential.
Why Choose Samshion for 5-Axis CNC Machining
We review whether a feature is best produced by 3-axis milling, indexed 3+2 machining, simultaneous 5-axis machining, turning, EDM or a combination of processes. This prevents a complicated or expensive route from being used merely because a machine is available. Customers developing broader machined assemblies can review our complete CNC machining services before selecting a specific process.
DFM Before Programming
Tool access, internal radii, cavity depth, wall stiffness, clamping areas and datum relationships are evaluated before toolpaths are released. The review identifies features that may cause long tool overhang, excessive setups, collision risk, distortion or unnecessary inspection cost. See the detailed CNC design for manufacturability guide for design principles that apply across machining processes.
Controlled Prototype-to-Production Transfer
Prototype results can inform tooling, workholding, machining sequence and inspection planning for later quantities. When the design is stable, repeat jobs can use controlled files, approved process instructions and defined inspection records. Production planning is still reviewed when quantities, material lots, finishes or acceptance requirements change.
Requirements-Based Quality Planning
Inspection is matched to the drawing and intended function. Critical dimensions may be checked with micrometers, bore gauges, height gauges, optical equipment, surface-roughness instruments or coordinate measurement, depending on feature geometry and tolerance. The agreed report, sampling level, certificates and functional tests must be stated in the quotation. Learn how requirements flow into inspection on our quality assurance page.
Clear Commercial Commitments
Lead time, achievable tolerance, surface finish and documentation are confirmed after reviewing the actual files. We do not treat a best-case result on one component as a universal capability for every material, size and geometry. This makes the quote more useful for engineering, purchasing and project scheduling.
Choose the Right 5-Axis Strategy
Five-axis machining adds two rotational axes to the three linear X, Y and Z movements used in conventional milling. The additional orientation can expose multiple faces to the cutter, improve access to angled features and allow the tool to follow complex surfaces. It does not mean every five-axis part requires all five axes to move at the same time.
In 3+2 axis machining, the rotary axes position the part or cutting tool at a selected angle and then remain fixed while a three-axis cutting operation is performed. This route is often efficient for angled holes, multi-face pockets and features that would otherwise require several manual setups.
In simultaneous 5-axis machining, the linear and rotary axes move together during cutting. The changing tool orientation can follow blades, impellers, sculpted housings, mold surfaces and other continuously varying geometry. Autodesk’s official 5-axis machining overview distinguishes these positional and simultaneous strategies and explains why the latter requires more advanced programming and collision control.
Samshion selects the least complex process that can manufacture and verify the design reliably. A well-planned 3+2 route may be faster, easier to inspect and more economical than simultaneous motion. Full five-axis cutting is reserved for geometry that benefits from continuous orientation or cannot be reached efficiently with fixed-angle operations.

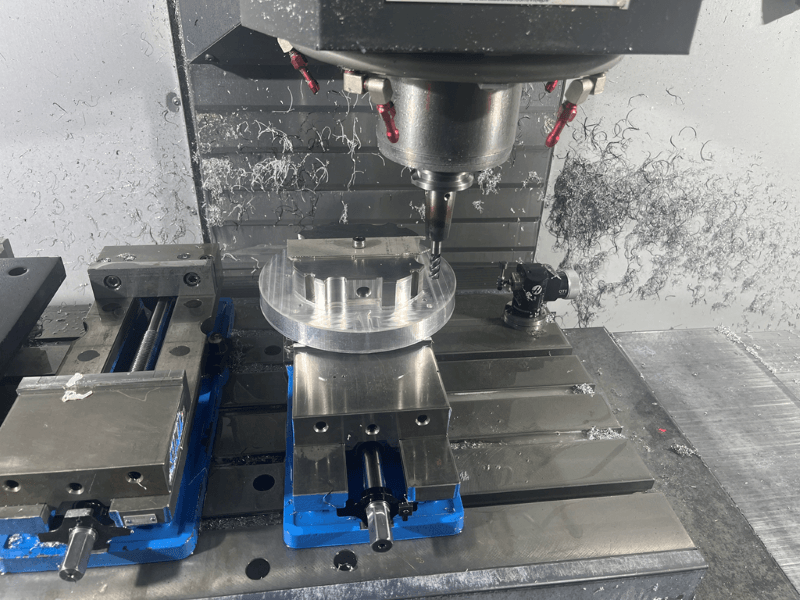

3-axis milling
- X, Y and Z cutting motion
- Accessible prismatic parts, plates, pockets and planar features
- May require separate setups for side or angled features

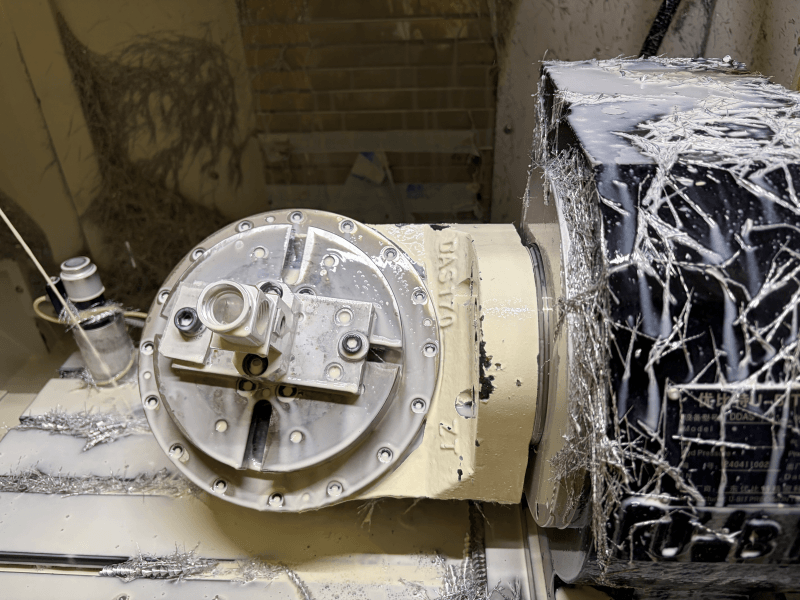

3+2 positional machining
- Rotary axes orient and lock; X, Y and Z perform the cut
- Multi-sided housings, angled holes, compound planes and deep features needing a short tool
- Rotary limits, fixture access and datum transfer still require review

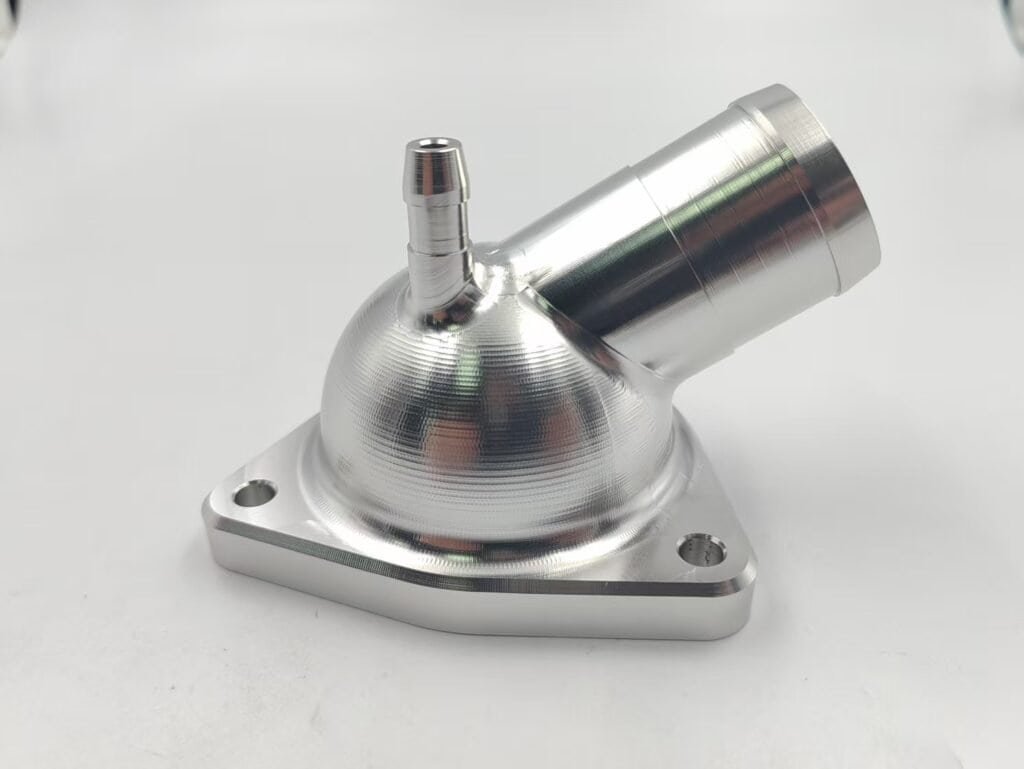

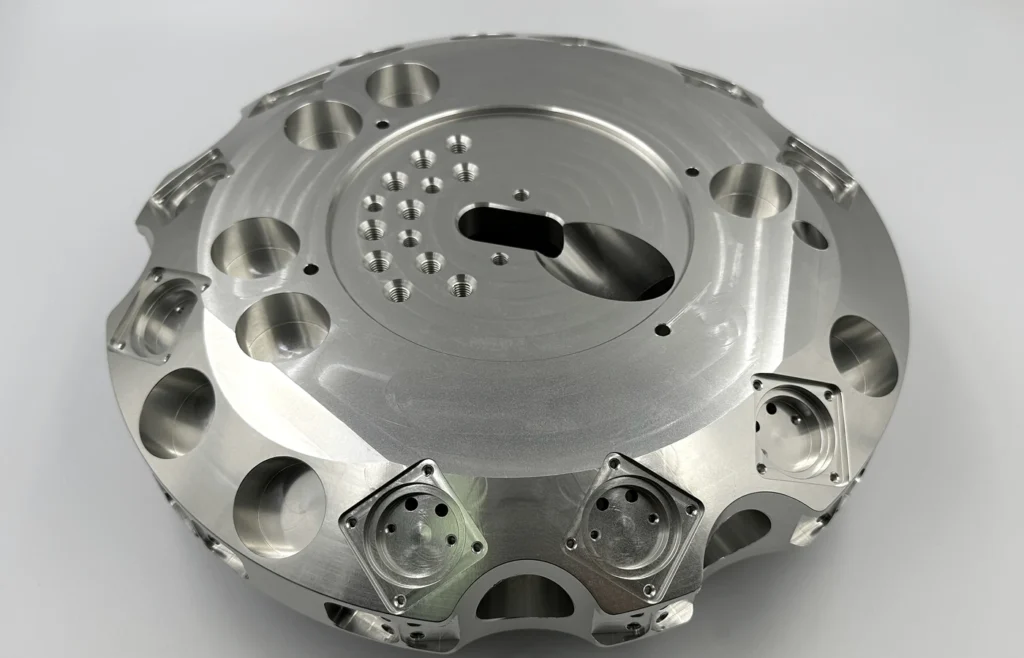

Simultaneous 5-axis machining
- Linear and rotary axes move together while cutting
- Impellers, blades, organic surfaces, swarf walls and continuously varying contours
- CAM strategy, collision verification, machine kinematics and inspection planning are critical
Materials for 5-Axis CNC Machined Parts
Material selection must be based on strength, stiffness, weight, temperature, chemical exposure, wear, conductivity, dimensional stability, finish compatibility and regulatory obligations. Machinability influences tool life, cycle time, burr formation, heat generation and attainable surface quality, but it should not override the functional requirements.
Common examples
6061, 7075 and other grades available by quotation
Design and machining considerations
Good strength-to-weight options; thin sections, residual stress, anodizing allowance and alloy-specific performance require review

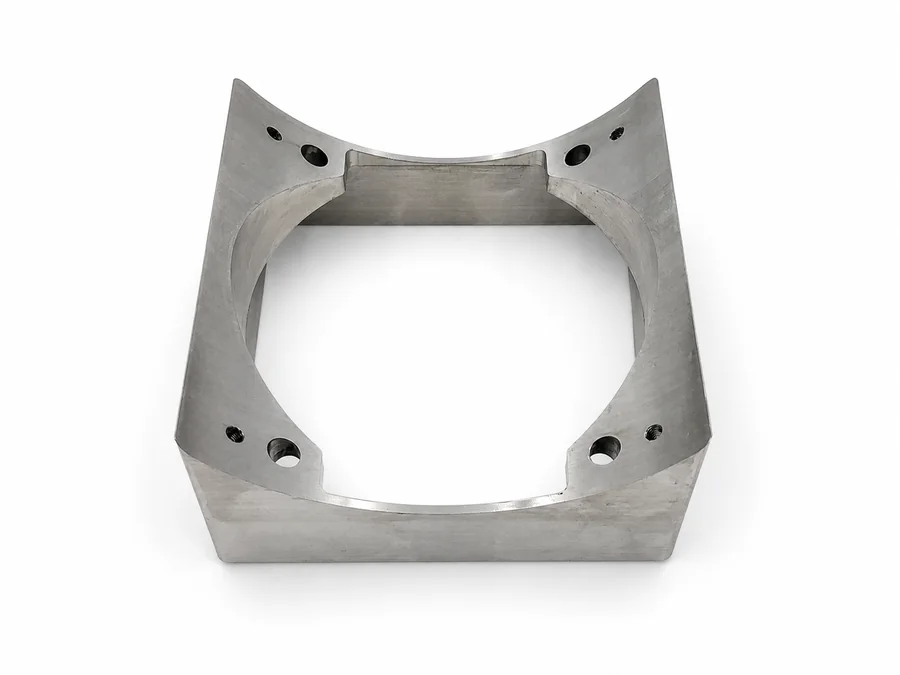

Common examples
303, 304, 316, 17-4PH and other specified grades
Design and machining considerations
Work hardening, tool access, heat, burr control, passivation and material condition influence the route

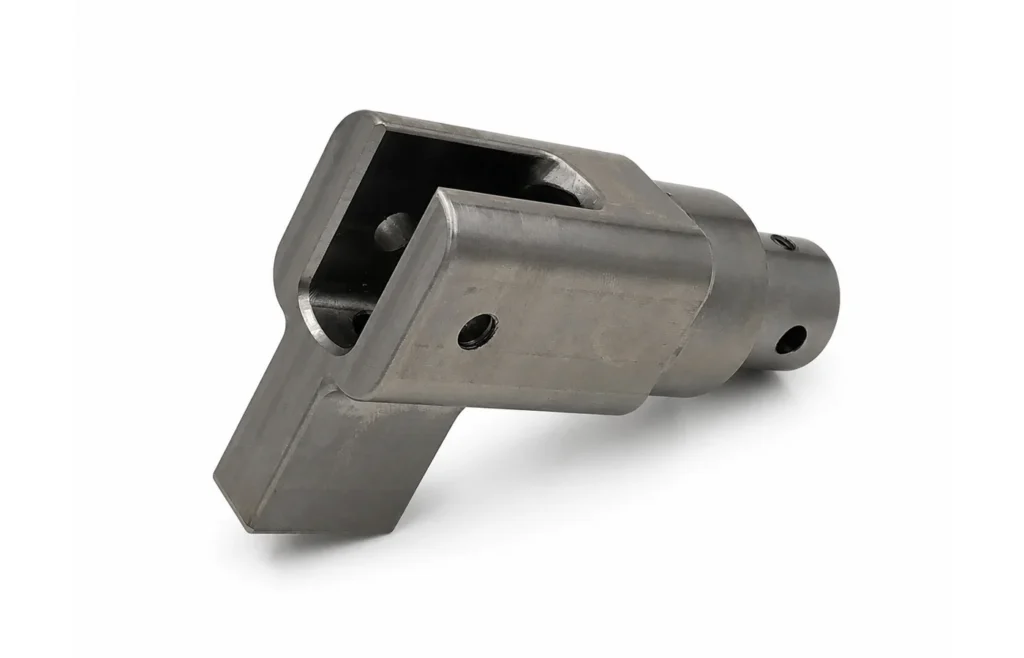

Common examples
Mild steel, 4140 and qualified tool steels
Design and machining considerations
Hardness, heat treatment condition, stock allowance, corrosion protection and cutting-tool selection affect cost
Common examples
Grade and condition per customer specification
Design and machining considerations

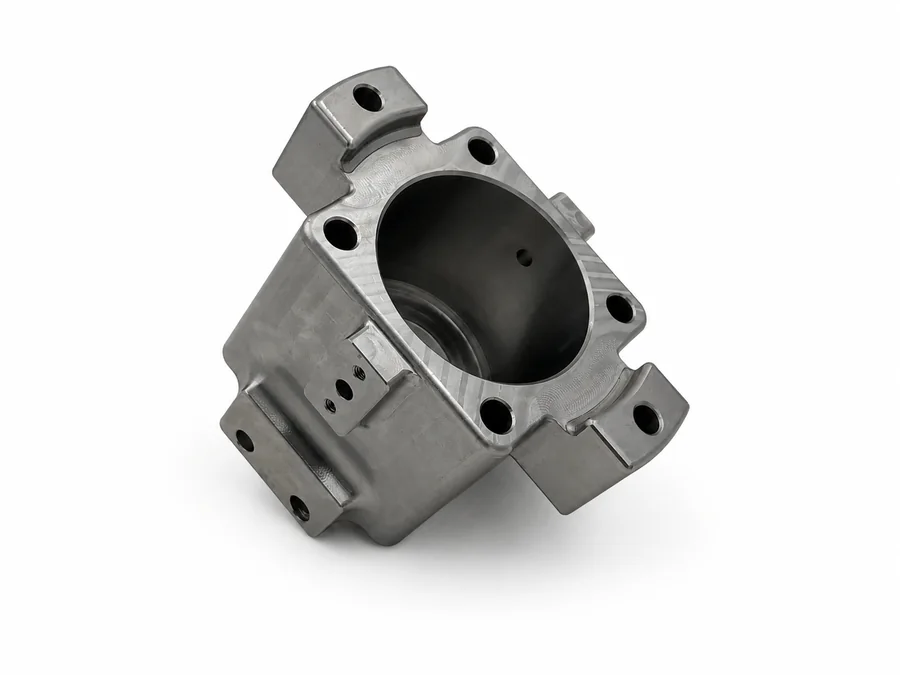

Low thermal conductivity, cutting forces, tool engagement and traceability normally require a conservative process plan
Common examples
Copper and machinable brass grades
Design and machining considerations
Conductivity, ductility, burr tendency, surface marking and alloy composition must be confirmed

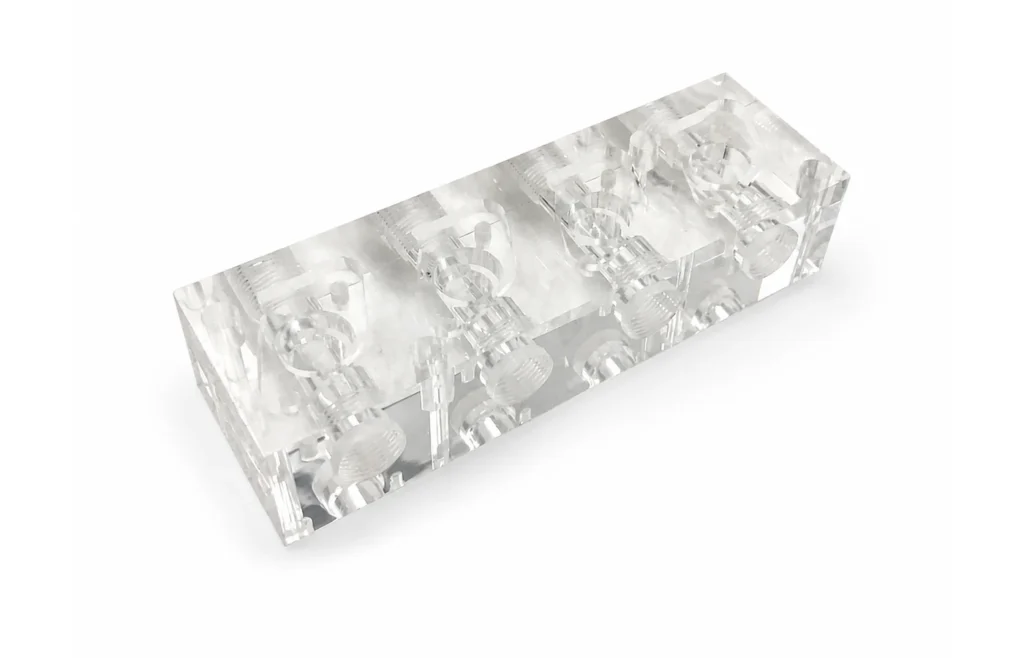

Common examples
POM, ABS, PC, nylon, PEEK and other machinable grades
Design and machining considerations
Moisture, thermal expansion, internal stress, clamping pressure and post-machining conditioning can affect dimensions
Use the manufacturing materials guide to review available families, then identify the exact grade, temper, color, stock form and certificate requirement in the request. A material substitution should never be made solely to shorten lead time without written customer approval.
Surface Finishes for 5-Axis Machined Parts
The machining strategy and the downstream finish must be planned together. Blasting, polishing, anodizing, plating, passivation, heat treatment and coating can change edges, dimensions, color and surface texture. Cosmetic expectations also require agreement on viewing conditions, protected faces, fixture marks and acceptable variation.
Typical purpose
Fast functional parts with visible toolpath pattern permitted
Items to define before quotation
Required roughness, edge breaks, burr limits and protected critical surfaces
Typical purpose
More uniform matte appearance and reduced visual tool marks
Items to define before quotation
Media, masking, texture target and dimensional sensitivity
Typical purpose
Corrosion resistance, wear performance or color
Items to define before quotation
Alloy, type, class, color range, coating allowance, masking and contact points
Typical purpose
Removal of free iron and improved corrosion condition
Items to define before quotation
Applicable specification, cleaning, material grade and test requirement
Typical purpose
Wear, corrosion, appearance or conductivity
Items to define before quotation
Thickness, masking, dimensional allowance, adhesion and certification
Typical purpose
Reduced roughness or improved appearance
Items to define before quotation
Direction, target roughness, geometry preservation and acceptable edge rounding
Typical purpose
Color and environmental protection
Items to define before quotation
Color standard, gloss, texture, film thickness, masking and cosmetic zones
Review the broader surface finishing options and identify the controlled finish specification in the drawing or purchase order. Avoid terms such as “smooth,” “perfect” or “mirror finish” without an objective roughness, sample or appearance standard.

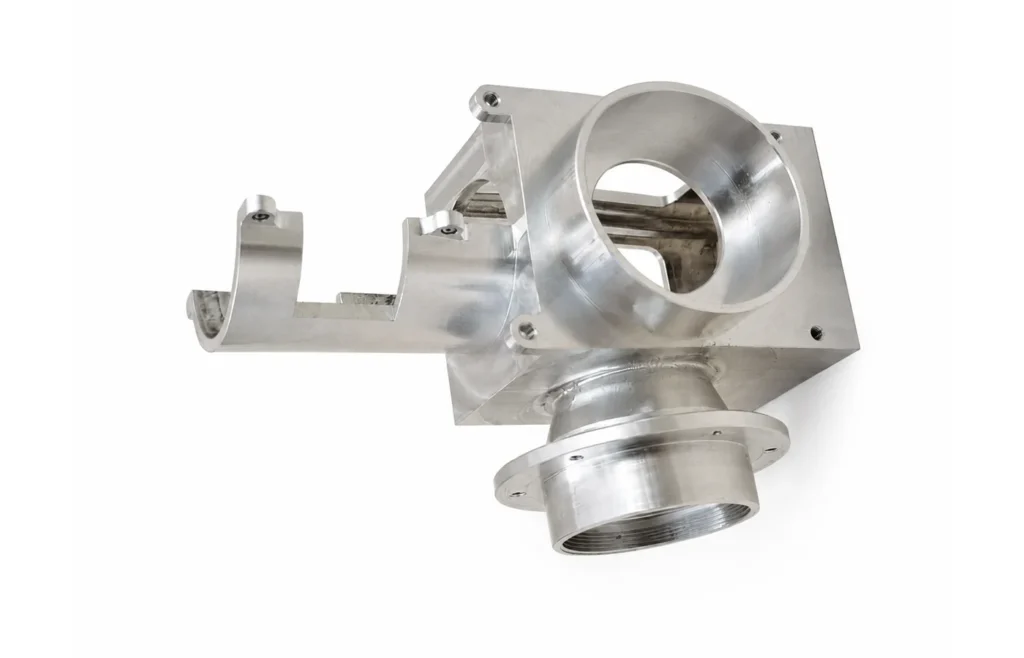

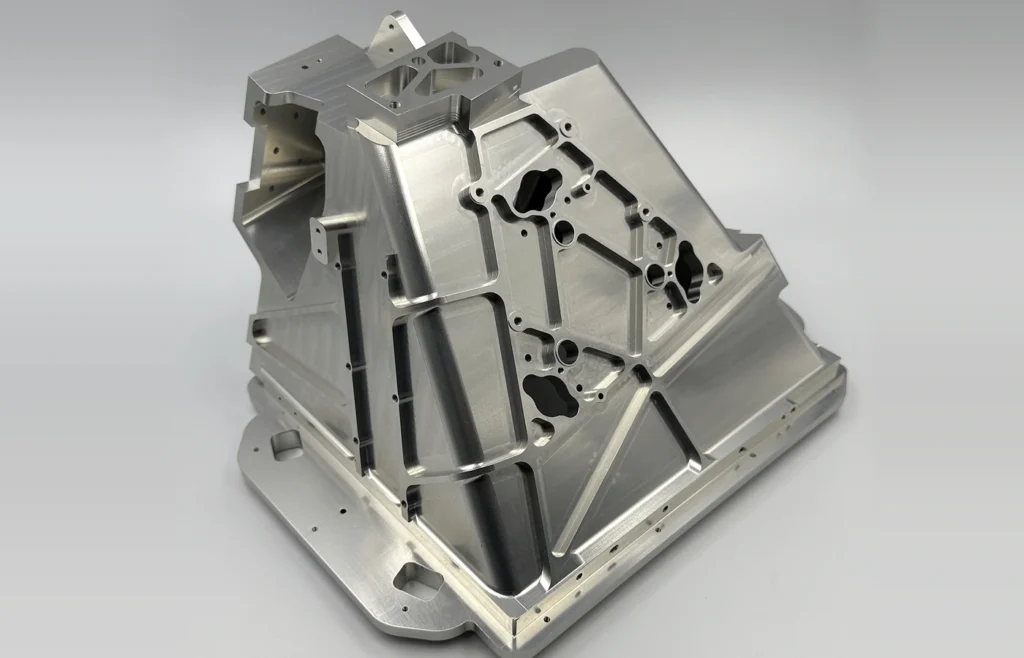

Parts Suited to 5-Axis CNC Machining
Five-axis machining creates the most value when it reduces risky refixturing, improves tool access or controls a complex surface. Typical component families include:

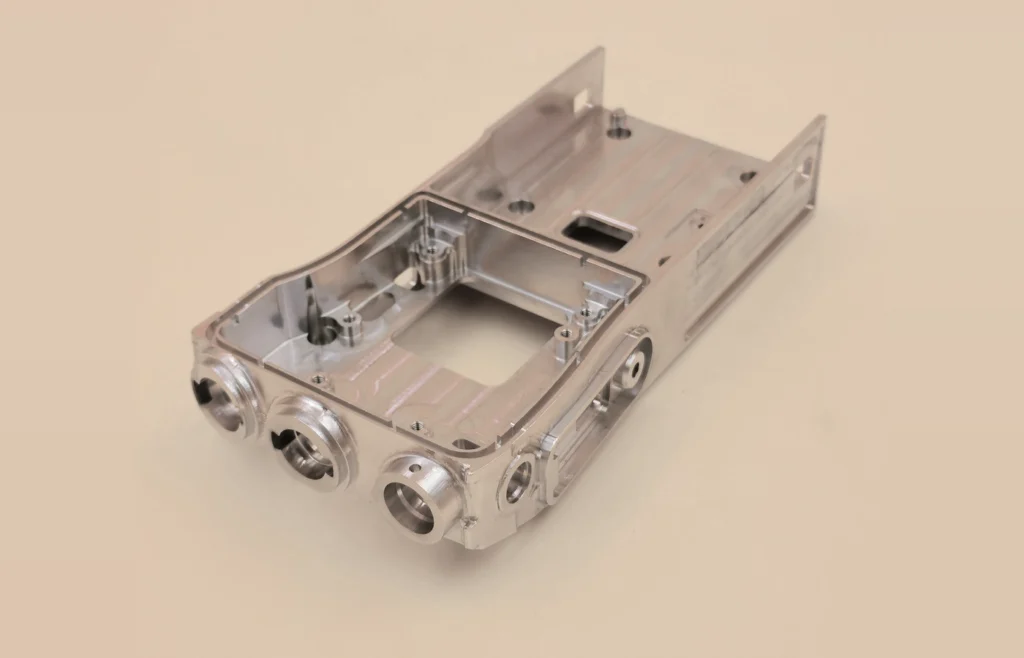

- Multi-sided housings with holes, pockets and sealing features on several orientations

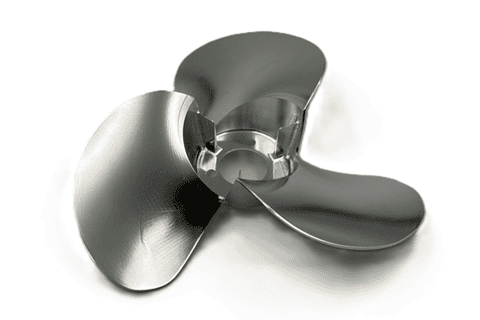

- Impellers, rotors and bladed components with continuously changing surfaces
- Mold inserts, electrodes and tooling components with deep or angled geometry
- Manifolds with intersecting or compound-angle passages

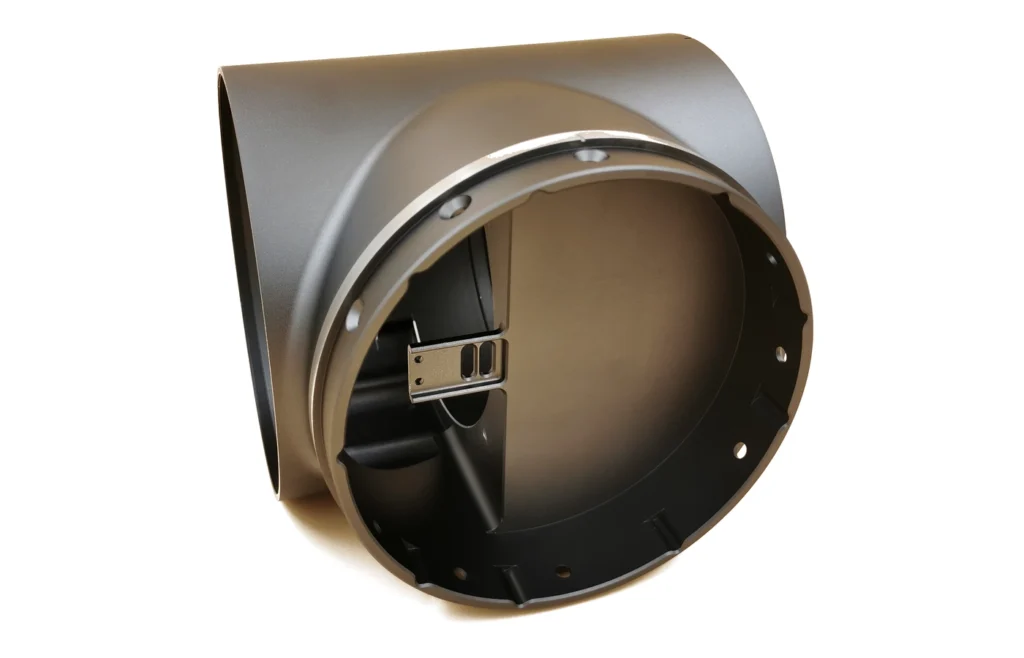

- Robotic brackets, end-effector components and lightweight structural parts

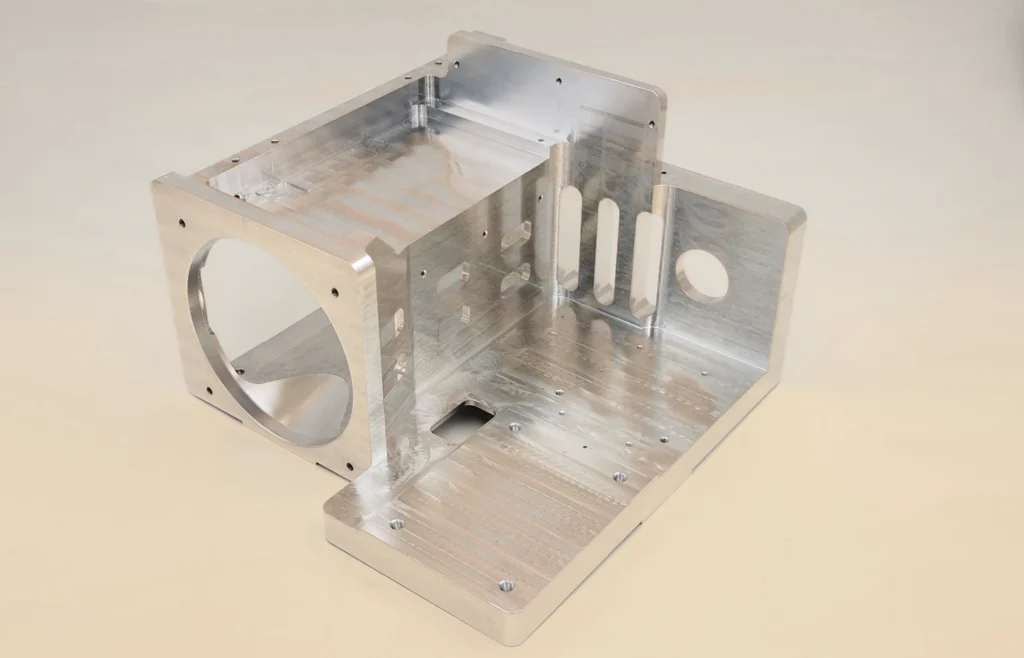

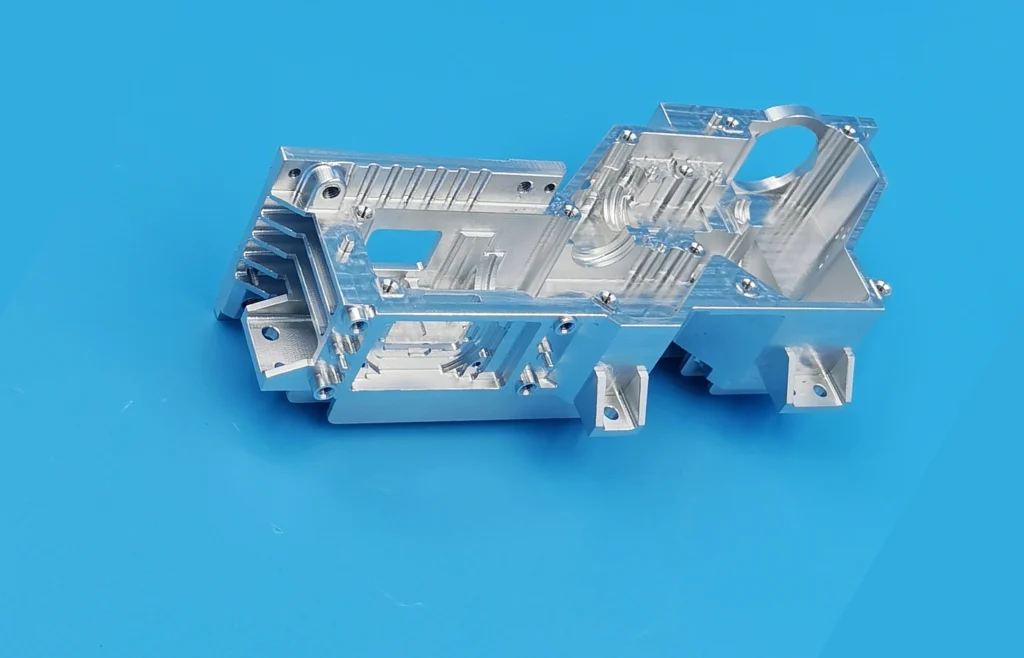

- Optical, sensor and instrumentation mounts with controlled angular relationships
- Medical-device development components and laboratory equipment parts, subject to customer-specified regulatory and validation requirements
- Automotive, aerospace and industrial prototypes where a production-representative material and machined surface are needed
Five-axis machining is not automatically the best choice for flat plates, simple pockets or predominantly cylindrical parts. Conventional CNC milling services may be more economical for accessible prismatic features, while CNC turning services are often more efficient for shafts, bushings and rotational components.
From Quote to Finished 5-Axis Parts
Upload the Manufacturing Package
Send the latest STEP model or agreed solid format, controlled 2D drawing, quantity, material, finish, required ship date and inspection requirements through the instant quote page.
Receive DFM and Clarification Questions
Our engineering team reviews tool access, machining strategy, setup concept, stock, tolerances and secondary operations. Any assumption that affects function, cost or schedule is returned for confirmation.
Approve the Controlled Quote
The quotation identifies the agreed material, quantity, finish, inspection scope and lead time. Production should not begin while the model, drawing or acceptance requirements remain unresolved.

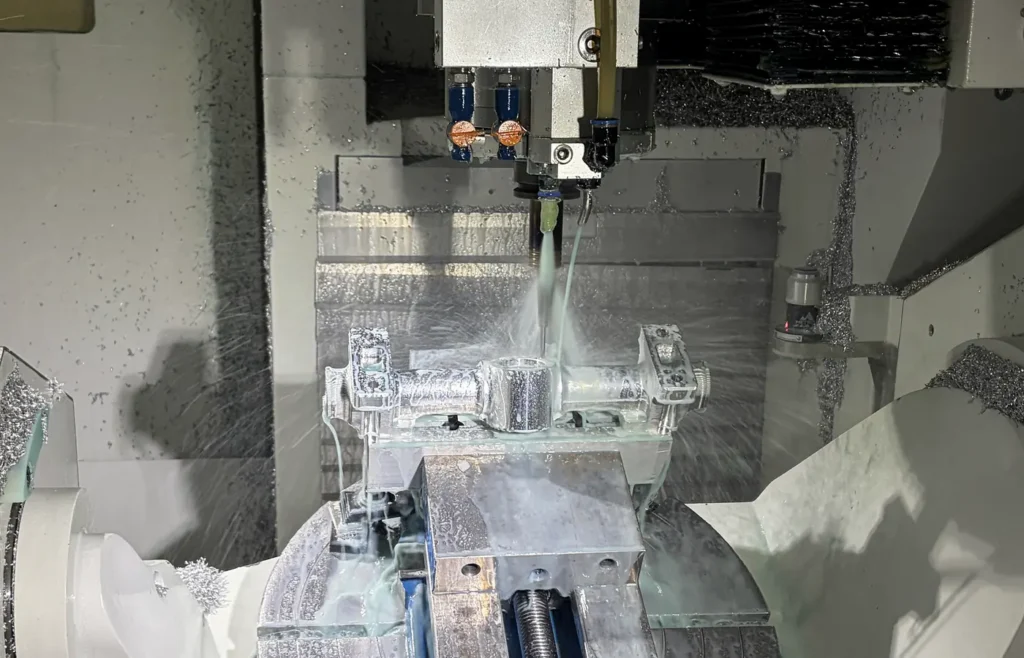

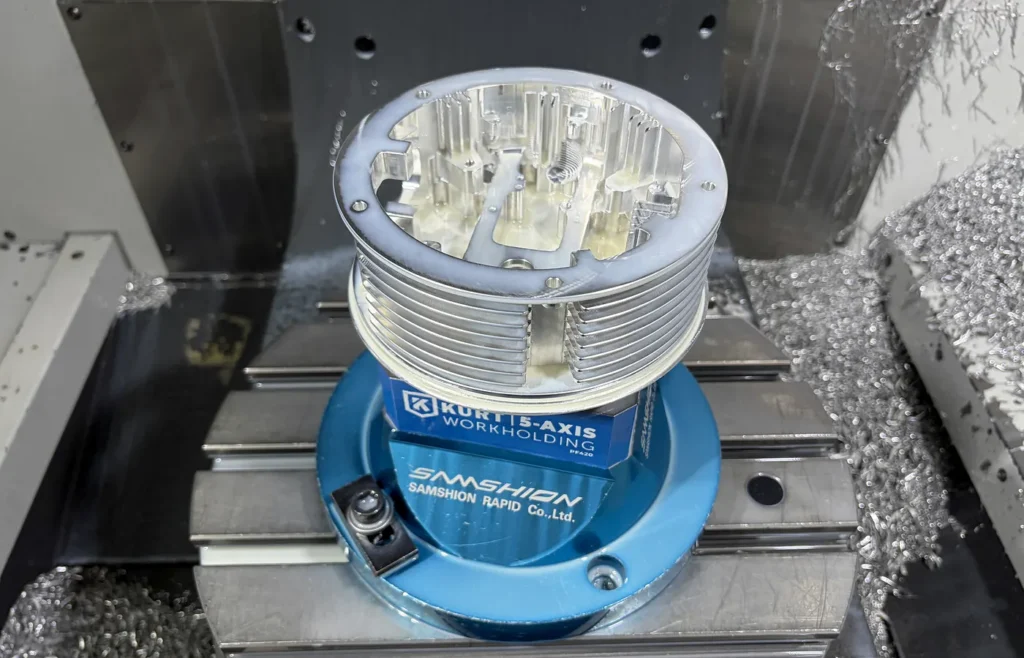

Programming, Setup and Machining
The selected 3+2 or simultaneous 5-axis route is programmed, simulated, set up and machined using the approved revision. Process checks are performed at planned stages.
Finishing and Inspection
Parts receive the specified edge treatment and surface process. Final inspection and documents follow the approved scope.
Packaging and Delivery
Critical surfaces, threads, edges and cosmetic finishes are protected for shipment. Delivery timing includes the quoted production stage plus the agreed courier and destination conditions.

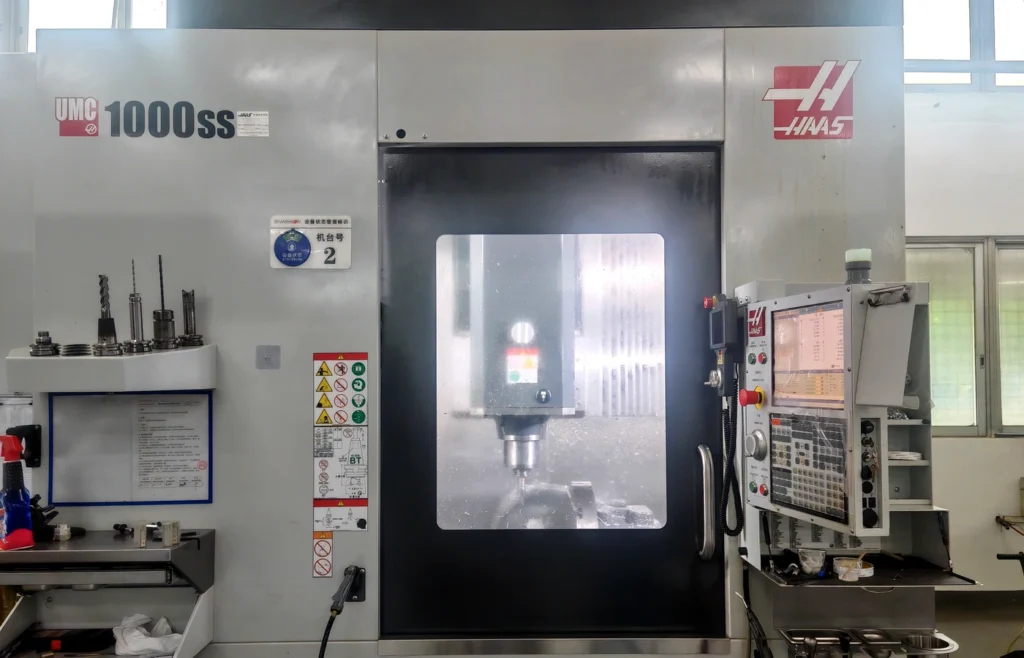

5-Axis CNC Machining Capabilities
The practical machining envelope depends on machine travel, rotary clearance, fixture height, tool-holder access and the orientation required by the part. For that reason, a bounding-box dimension alone cannot confirm feasibility. Submit the CAD model so the complete machine, holder, fixture and workpiece arrangement can be evaluated.
Important capability note
Do not publish a single tolerance such as +/-0.002 mm as if it applies to all dimensions. Achievable tolerance depends on feature type, nominal size, material, thermal stability, wall stiffness, setup count, tool access, surface finish and the agreed measurement method. If a project has critical geometric relationships, define them on a controlled drawing using an appropriate GD&T standard. ASME describes Y14.5 as a common language for communicating form, orientation, location, runout and datum requirements.
Capability area | Samshion project approach |
Machining strategies | 3-axis, 3+2 positional and simultaneous 5-axis routes selected by geometry and risk |
Project stage | Functional prototypes, design-verification parts, low-volume batches and repeat production |
Materials | Common aluminum, steel, stainless steel, copper alloys and machinable engineering plastics; grade and stock form confirmed per quote |
Geometry | Multi-sided features, compound angles, contoured surfaces, deep cavities, angled holes and features requiring controlled tool orientation |
Tolerances | Drawing-based and feature-specific; tighter requirements require datum, material, stability and inspection review |
Surface condition | As-machined and deburred parts plus qualified secondary finishes where available |
Inspection | Critical-dimension reports, dimensional reports and supporting records as defined in the quotation |
File formats | STEP or another agreed 3D solid format, plus a controlled 2D drawing for tolerances, datums, threads, finish and inspection notes |

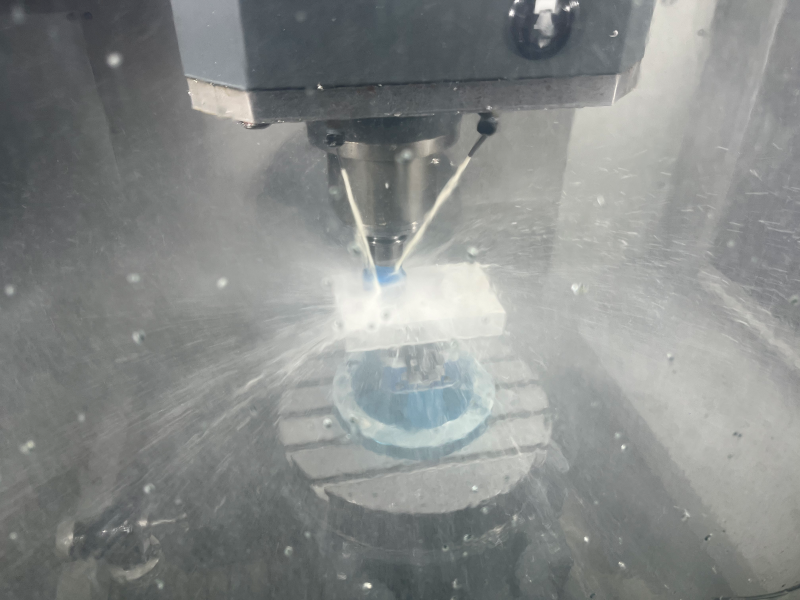

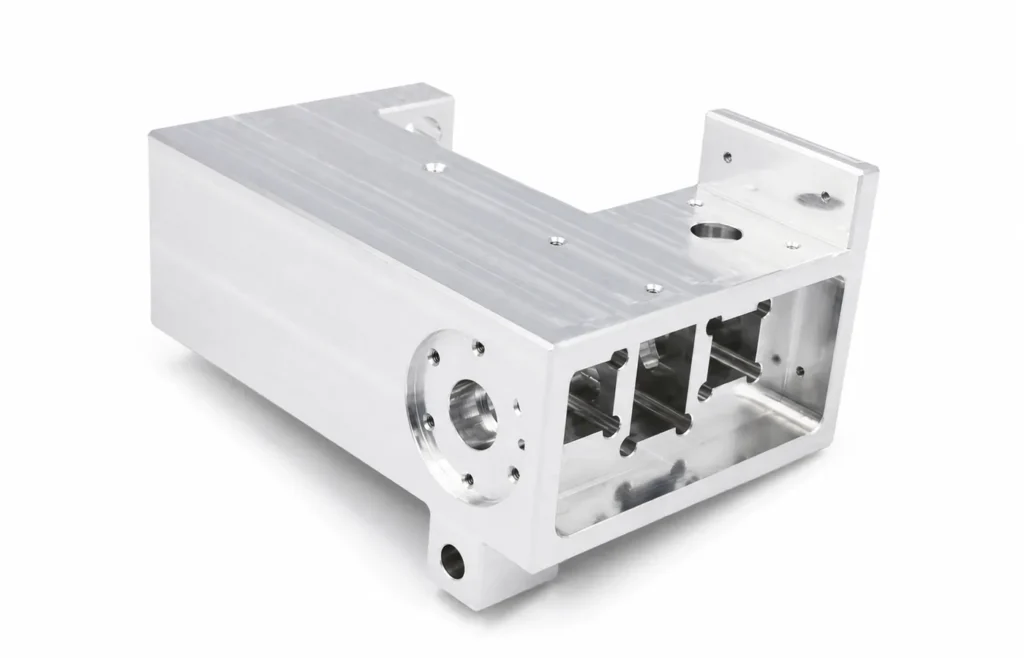

Design Guidelines for Reliable 5-Axis Machining
Define Functional Datums and Critical Features
Use the drawing to identify the surfaces and axes that establish assembly, sealing, alignment or motion. A five-axis machine can reduce setup changes, but it cannot compensate for an ambiguous datum structure. The manufacturing and inspection plans should reference the same functional relationships.

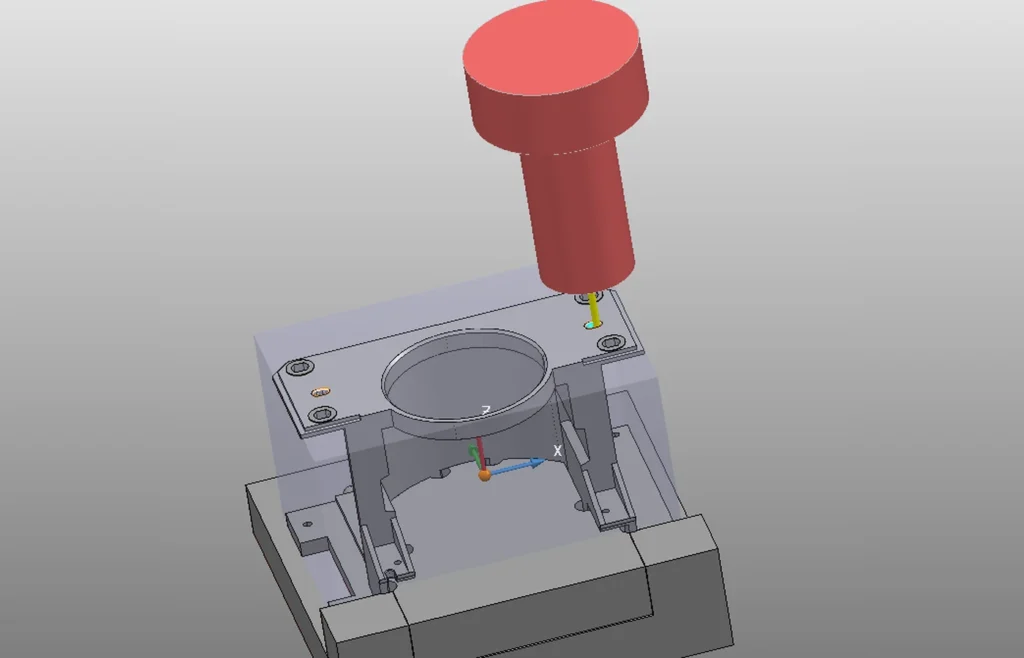

Provide Tool and Holder Access
The cutting edge, shank and holder need a collision-free path. A visible surface in the CAD model is not necessarily machinable from the required angle. Deep narrow cavities, undercuts, close walls and hidden intersections should be reviewed using the complete tool assembly and machine kinematics.
Use Practical Internal Radii
Milling cutters are round. Internal corners require a radius, and a cavity designed with a corner only marginally larger than the cutter can force slow motion and high engagement. Increasing a nonfunctional corner radius can allow a stronger tool and a more stable path. The internal corner radius guide explains this relationship in detail.
Control Depth-to-Width Ratios
Deep cavities and narrow slots may require long tools. Additional overhang reduces stiffness and can increase deflection, vibration and surface variation. Where function permits, widen access, reduce depth, add a larger corner radius or divide the assembly into machinable components.
Protect Thin Walls and Slender Features
Thin sections can move under cutting and clamping forces. Balanced stock removal, intermediate finishing, support features and controlled clamping may be required. The thin-wall CNC machining guide provides more detailed guidance for stiffness and sequence.
Specify Only Necessary Tight Tolerances
Apply tight limits to relationships that control function, not every model dimension. Broad tight tolerances can require extra finishing, stabilization and inspection without improving the assembly. If a requirement is critical, define its datum reference and acceptance method rather than relying on an unusually small plus-minus value alone.
Treat Threads, Holes and Surface Texture as Controlled Requirements
State thread standard, size, class, depth and any gauge requirement. Identify precision bores, reamed holes, sealing surfaces and roughness targets on the drawing. Do not assume the 3D model alone communicates these acceptance criteria.
Quality Control for 5-Axis CNC Parts
Five-axis machining can reduce repositioning, but quality still depends on the complete process: material control, machine condition, workholding, tool data, offsets, in-process verification, final inspection and record review.
Pre-Production Review
Engineering checks file revision, units, material, stock, geometry, datum structure, tolerances, surface finish, inspection scope and delivery target. Open questions are resolved before the order enters programming.
Programming and Setup Verification
Toolpaths are checked for machine travel, rotary limits, holder clearance, fixture interference, remaining stock and safe transitions. The approved postprocessor and machine configuration must match the actual equipment. Workholding is selected to resist cutting forces without distorting the part.

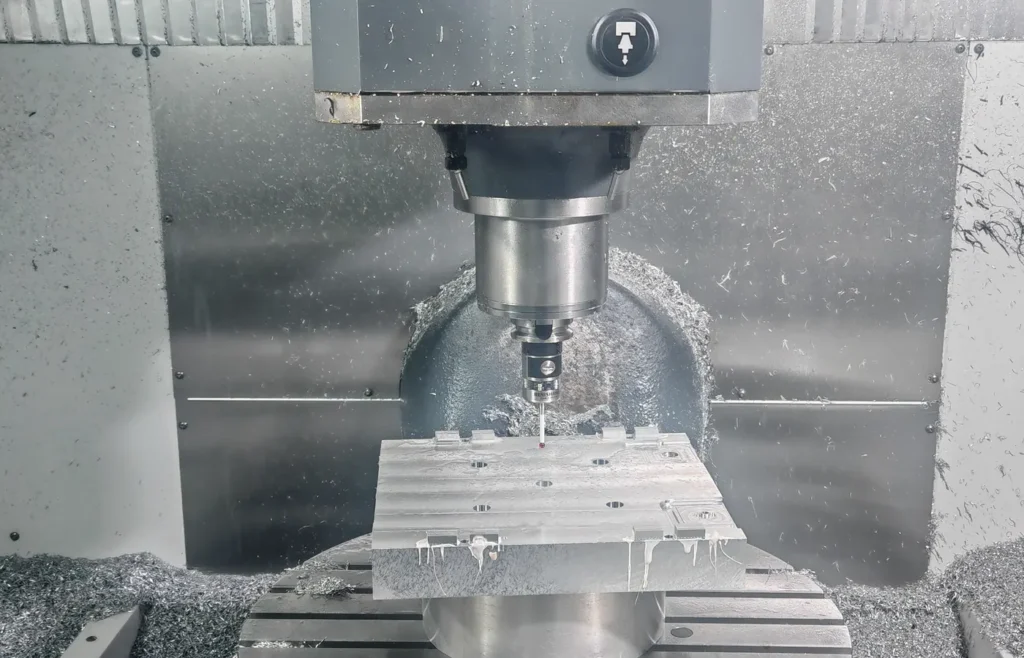

In-Process Control
Offsets, tools, stock location and selected dimensions are verified at planned stages. In-process measurement reduces the risk of completing all operations before a developing problem is detected, but it does not replace final inspection in a stable condition.
Final Inspection and Documentation
The finished part is inspected against the controlled drawing and agreed report scope. Measurement method must suit the feature and tolerance. Request the documents needed for the project, such as a critical-dimension report, full dimensional report, material certificate or first-article record, before production begins. The CNC machining inspection guide explains how to align characteristics with suitable instruments and reporting.
5-Axis CNC Machining FAQs
What is the difference between 3+2 and simultaneous 5-axis machining?
In 3+2 machining, the rotary axes position the part or tool at a fixed angle, then the cut is performed with three linear axes. In simultaneous machining, the linear and rotary axes move together during cutting. Positional machining is often suitable for multi-face and angled features, while simultaneous motion is used for continuously varying surfaces and geometry that requires changing tool orientation.
Does every complex part require simultaneous 5-axis machining?
No. Many complex parts can be produced efficiently with 3-axis or indexed 3+2 operations. The correct choice depends on surface continuity, tool access, setup count, tolerance relationships, fixture design, inspection method and total manufacturing risk.
What tolerance can 5-axis CNC machining achieve?
There is no responsible universal tolerance for every five-axis part. Capability depends on feature size, geometry, material, thermal condition, workholding, tool access, setup, finish and measurement method. Submit a controlled drawing so critical dimensions and GD&T requirements can be reviewed individually.
Can you machine prototypes and production quantities?
Yes, subject to project review. Prototype and repeat-production routes may use different fixtures, inspection plans and documentation. Quantity, revision stability and annual demand should be provided during quotation so the route can be planned appropriately.
Which materials can be machined?
Common aluminum, stainless steel, carbon and alloy steel, copper alloys and engineering plastics can be evaluated. Exact grade, condition, dimensions, certification and availability must be confirmed for the project. Titanium and other difficult-to-machine materials require additional tool, heat and process planning.
What files should I send?
Provide a current 3D solid model, preferably STEP or another agreed format, and a controlled 2D drawing containing critical dimensions, datums, tolerances, threads, surface texture, material, finish and inspection notes. Include quantity and the required ship date.
Can 5-axis machining eliminate all setups?
No. Five-axis access can reduce manual repositioning, but a part may still require more than one setup to release it from stock, machine the final clamping face, control distortion or access a blocked feature. Setup count is confirmed during DFM review.
How is the price calculated?
Price is influenced by material and stock size, programming, setup, fixture requirements, cycle time, tool wear, inspection, quantity, secondary finishing and schedule. A higher machine hourly rate can sometimes reduce total cost by removing setups, but this must be evaluated on the actual geometry.
How long does 5-axis machining take?
Lead time depends on file completeness, material availability, programming complexity, setup, machining time, finishing, inspection documents and current capacity. The quotation should distinguish production lead time from courier transit and customs clearance.
