Acetal is widely used for bushings, guides, rollers, manifolds and precision mechanisms because it offers low friction, good wear behavior and low moisture absorption compared with many other engineering plastics. Delrin is a well-known acetal homopolymer trade name, while POM also includes copolymer grades.
The names are often used interchangeably in RFQs, but grade and stock form still matter. The supplier should know whether the requirement is homopolymer, copolymer, filled, food-contact, static-dissipative or another controlled grade before production starts.
Scope, Search Intent and Technical Boundary
This article distinguishes acetal homopolymer and copolymer machining decisions. It avoids repeating the site’s broader plastics-material overview.
Designers, quality teams and sourcing personnel can use this workflow to expose assumptions about Delrin CNC machining before material is released. For broader geometry and specification guidance, use the design for manufacturability guide alongside this feature-level discussion.
Key Takeaways
- Specify the required POM grade rather than only a colour.
- Keep tools sharp and remove chips before they recut the surface.
- Support bores and thin sections without forcing them round.
- Protect burr-sensitive edges and inspect them under suitable lighting.
- Use functional tolerances where assembly requires them instead of tightening every dimension.
Delrin, Acetal and POM: What the Drawing Should Say
POM is the polymer family. Delrin commonly refers to an acetal homopolymer product line, while acetal copolymers are supplied under other names. They can differ in centre-line porosity tendency, chemical behavior and processing history.
For purchased stock, identify grade, colour, stock form and certification. A generic callout such as ‘black plastic’ is not enough for a repeatable production order.
Machining Behavior and Chip Control
POM often produces continuous chips and can machine to a clean finish with sharp tools. Problems appear when chips wrap around the tool, recut the surface or trap heat. Toolpath, flute space and chip evacuation should therefore be planned together. For additional polymer-specific process guidance, consult the Ensinger machining guidelines for semi-finished plastics, particularly when reviewing heat generation, chip evacuation and stress in semi-finished stock.
Rubbing and dull tools can smear edges. A lighter finishing cut is useful only when the tool remains engaged cleanly and the wall is supported. For the corresponding manufacturing decision and capability context, consult SAMSHION’s polymer CNC machining challenges.
Workholding Rings, Bushings and Thin Covers
Round parts may become oval if the jaws concentrate pressure. Soft jaws, split sleeves, expanding mandrels or full-contact nests can distribute load. For flat parts, vacuum or sacrificial-tab strategies may help when edge access is important.
Inspect the part after releasing the fixture. A dimension measured only under clamping force does not describe the free component delivered to the customer. For the corresponding manufacturing decision and capability context, consult SAMSHION’s CNC turning services.
Threads, Press Fits and Bearing Surfaces
POM is often used for sliding or rotating features, so the drawing should distinguish between a nominal clearance and a true bearing fit. Consider operating temperature, mating material, lubrication and load rather than copying a metal fit table. For the corresponding manufacturing decision and capability context, consult SAMSHION’s CNC fixturing and setup guide.
For threads, provide adequate engagement and avoid sharp roots. Repeated assembly or high torque may justify an insert, but insert installation can introduce local stress.
Tolerance and Inspection Strategy
A realistic plan controls the dimensions that govern fit, position and sealing while allowing economic tolerance elsewhere. Measurement force should be low enough that a flexible feature is not compressed by the gauge.
Record inspection temperature when critical fits are sensitive to thermal expansion. Functional gauges are often valuable for mating features and repetitive production.
RFQ Checklist for Machined POM Parts
- Exact resin grade and colour
- 3D model plus controlled 2D dimensions
- Operating temperature and mating components
- Critical bores, fits, threads and surface requirements
- Quantity, cleaning and inspection documentation
Engineering Variables to Confirm Before Quotation
Homopolymer, copolymer, filled or controlled-grade specification
For Delrin CNC machining, homopolymer, copolymer, filled or controlled-grade specification requires an explicit engineering decision. Use this requirement to frame the first technical review. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The decision can move a feature from a routine check to a controlled first-article characteristic. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity. Available grades, stock forms and supplied conditions can be cross-checked against the CNC machining materials guide before quotation.
Continuous chip formation and chip wrapping
For Delrin CNC machining, continuous chip formation and chip wrapping requires an explicit engineering decision. Resolve this point while the process route is still flexible. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It can alter support strategy, cutter access and the order of finishing operations. Where two documents disagree, obtain a controlled clarification before releasing material.
Heat generated by rubbing or recutting
For Delrin CNC machining, heat generated by rubbing or recutting requires an explicit engineering decision. Use this requirement to frame the first technical review. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The result governs how much process evidence is needed to support the quotation. Quote alternatives separately when more than one technically credible interpretation exists.
Jaw pressure on rings, bushings and thin covers
For Delrin CNC machining, jaw pressure on rings, bushings and thin covers requires an explicit engineering decision. Do not allow a default title-block tolerance to answer this question indirectly. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. The result governs how much process evidence is needed to support the quotation. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity.
Burr formation at cross holes and slot exits
For Delrin CNC machining, burr formation at cross holes and slot exits requires an explicit engineering decision. Make the functional intent visible before tooling is selected. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It may determine whether a flexible prototype route remains suitable for repeat production. Quote alternatives separately when more than one technically credible interpretation exists.
Operating temperature and mating-material expansion
For Delrin CNC machining, operating temperature and mating-material expansion requires an explicit engineering decision. Treat this as an RFQ input, not a shop-floor surprise. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. A clear answer prevents manufacturing convenience from replacing functional intent. Tie any relaxation to the actual function rather than to a generic shop capability statement.
Failure Modes and Root-Cause Diagnosis
A bore looks round in soft jaws and becomes oval in the free state
A characteristic failure for Delrin CNC machining occurs when a bore looks round in soft jaws and becomes oval in the free state. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Inspect a first-off part both before and after the relevant secondary operation. Use the diagnosis to set a measurable control rather than a vague instruction to machine more carefully.
Continuous chips scratch a previously finished surface
A characteristic failure for Delrin CNC machining occurs when continuous chips scratch a previously finished surface. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Check whether the indication follows the cutter, the setup, the material lot or the inspection alignment. Confirm that the remedy does not transfer error to a mating feature or datum.
Press-fit dimensions change after aggressive material removal
A characteristic failure for Delrin CNC machining occurs when press-fit dimensions change after aggressive material removal. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Map the symptom by feature location, tool life and operation sequence instead of averaging it into one result. Correct the mechanism and then revalidate the complete functional relationship.
Manual deburring rounds a sealing or bearing edge
A characteristic failure for Delrin CNC machining occurs when manual deburring rounds a sealing or bearing edge. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Separate geometry created by the toolpath from movement created by heat or fixture load. If the cause remains uncertain, contain the lot and expand the trial before releasing more material.

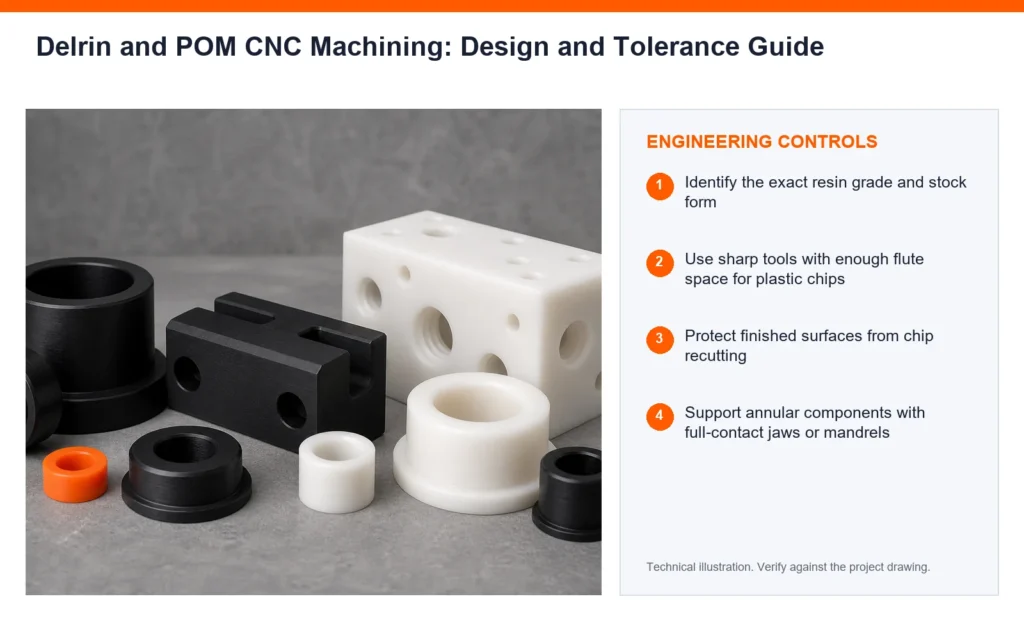

Process Controls for a Repeatable Result
Identify the exact resin grade and stock form
A process plan for Delrin CNC machining can control this risk by choosing to identify the exact resin grade and stock form. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Assign an operator check at the operation where the variable can still be corrected. Remove the control if trials show that it adds handling without reducing the targeted variation.
Use sharp tools with enough flute space for plastic chips
A process plan for Delrin CNC machining can control this risk by choosing to use sharp tools with enough flute space for plastic chips. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Pair the control with a measurable limit rather than a general workmanship instruction. Repeat production should not depend on an operator remembering an undocumented exception.
Protect finished surfaces from chip recutting
A process plan for Delrin CNC machining can control this risk by choosing to protect finished surfaces from chip recutting. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Verify that the method remains stable after tool change, unclamping or finishing. A stable process is demonstrated by evidence across parts, not by one favorable measurement. The applicable production route and process controls are outlined in SAMSHION’s custom CNC milling.
Support annular components with full-contact jaws or mandrels
A process plan for Delrin CNC machining can control this risk by choosing to support annular components with full-contact jaws or mandrels. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Review adjacent walls, threads, sealing lands and datums for unintended consequences. Retain enough evidence to distinguish setup drift from material or tool variation.
Plan deburring access before machining cross features
A process plan for Delrin CNC machining can control this risk by choosing to plan deburring access before machining cross features. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Review adjacent walls, threads, sealing lands and datums for unintended consequences. Remove the control if trials show that it adds handling without reducing the targeted variation.
Use functional gauges for repetitive mating features
A process plan for Delrin CNC machining can control this risk by choosing to use functional gauges for repetitive mating features. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Review adjacent walls, threads, sealing lands and datums for unintended consequences. Retain enough evidence to distinguish setup drift from material or tool variation.
Inspection Strategy and Acceptance Evidence
Free-state bore diameter and roundness
Inspection of Delrin CNC machining should explicitly address free-state bore diameter and roundness. First define the characteristic, datum reference and part condition represented by the result. Correlate shop-floor and final-inspection methods before using either for acceptance. Identify whether each result is measured, visually verified or supported only by material documentation.
Bearing or sliding fit at the stated operating condition
Inspection of Delrin CNC machining should explicitly address bearing or sliding fit at the stated operating condition. First define the characteristic, datum reference and part condition represented by the result. Build the datum alignment exactly as defined on the controlled drawing. Identify whether each result is measured, visually verified or supported only by material documentation.
Edge condition at cross holes
Inspection of Delrin CNC machining should explicitly address edge condition at cross holes. First define the characteristic, datum reference and part condition represented by the result. Correlate shop-floor and final-inspection methods before using either for acceptance. Keep the measurement program and fixture revision with the inspection record.
Surface texture on guide and seal areas
Inspection of Delrin CNC machining should explicitly address surface texture on guide and seal areas. First define the characteristic, datum reference and part condition represented by the result. Correlate shop-floor and final-inspection methods before using either for acceptance. Identify whether each result is measured, visually verified or supported only by material documentation. The available verification and reporting workflow is summarized in SAMSHION’s quality assurance and inspection.
Grade and color traceability when specified
Inspection of Delrin CNC machining should explicitly address grade and color traceability when specified. First define the characteristic, datum reference and part condition represented by the result. Use a functional gauge when fit matters more than a single isolated coordinate. Report nominal, limits and actual result; do not substitute a certificate statement for measured data.
Cost, Lead Time and Quotation Transparency
Material grade availability
In a quotation for Delrin CNC machining, material grade availability can influence both lead time and total manufacturing cost. It can add material preparation, a dedicated cutter or a separate verification step. Make the buyer aware when a local feature requirement dominates the economics of the complete part.
Chip-control and cleaning requirements
In a quotation for Delrin CNC machining, chip-control and cleaning requirements can influence both lead time and total manufacturing cost. A prototype route may be economical once but unsuitable for a repeating order. Offer a DFM alternative only when it preserves assembly, sealing, load or appearance.
Special support for rings
In a quotation for Delrin CNC machining, special support for rings can influence both lead time and total manufacturing cost. Secondary finishing and final-state inspection can make this more influential than raw cycle time. Compare flexible and dedicated production routes when order volume could justify either.
Fit and functional-gauge verification
In a quotation for Delrin CNC machining, fit and functional-gauge verification can influence both lead time and total manufacturing cost. It may increase setup time, prove-out time or the risk allowance on expensive stock. Make the buyer aware when a local feature requirement dominates the economics of the complete part.
A Practical Engineering Review Sequence
Start with the function protected by homopolymer, copolymer, filled or controlled-grade specification. Mark the related datums, interfaces and delivered-state requirements on the controlled drawing. The manufacturing review can then choose stock, setups and cutting access around that function instead of treating every dimension as equally critical.
Walk through the likely failure mechanism represented by this project: a bore looks round in soft jaws and becomes oval in the free state. Decide which evidence can reveal the problem earliest and which operation can still correct it. This ordering avoids discovering a predictable condition only after finishing or final inspection.
Use the first article to validate the proposed control, including the instruction to identify the exact resin grade and stock form. The approval part must represent the intended material, fixture, program, secondary operations and measurement alignment. Feed the result back into the process record before releasing the balance of the order.
RFQ and DFM Checklist
- Native 3D CAD model plus a controlled 2D drawing for tolerances and notes
- Exact material grade, condition, stock preference and certification requirement
- Functional datums, mating components and genuinely critical characteristics
- Quantity, prototype or production intent, and expected repeat-order status
- Surface finish, coating, heat treatment, cleaning and marking requirements
- Inspection report, certificate, gauge or sampling requirements
- Any approved alternative geometry or process constraints
Additional Engineering Review Notes
A useful design-review exercise is to trace one requirement through the complete production route. For Delrin CNC machining, examine homopolymer, copolymer, filled or controlled-grade specification and ask how it could contribute to a condition in which continuous chips scratch a previously finished surface. One candidate action is to protect finished surfaces from chip recutting; however, its value must be demonstrated through surface texture on guide and seal areas. Check whether unclamping, cleaning or finishing changes the apparent mechanism. Also consider the commercial effect of material grade availability, because a technically sound route must be quoted with transparent assumptions. Keep the approved method connected to the fixture, program and inspection revision.
A practical supplier discussion can begin with one ambiguous or high-consequence feature. For Delrin CNC machining, examine continuous chip formation and chip wrapping and ask how it could contribute to a condition in which press-fit dimensions change after aggressive material removal. One candidate action is to support annular components with full-contact jaws or mandrels; however, its value must be demonstrated through grade and color traceability when specified. Record the part state and operation where the observation first becomes visible. Also consider the commercial effect of chip-control and cleaning requirements, because a technically sound route must be quoted with transparent assumptions. The resulting instruction should name the operation, responsible role, limit and retained record.
A useful design-review exercise is to trace one requirement through the complete production route. For Delrin CNC machining, examine heat generated by rubbing or recutting and ask how it could contribute to a condition in which manual deburring rounds a sealing or bearing edge. One candidate action is to plan deburring access before machining cross features; however, its value must be demonstrated through free-state bore diameter and roundness. Record the part state and operation where the observation first becomes visible. Also consider the commercial effect of special support for rings, because a technically sound route must be quoted with transparent assumptions. When the control affects fit or appearance, obtain approval through the drawing revision rather than email alone.
The project team should test whether its acceptance rule still makes sense after all secondary operations. For Delrin CNC machining, examine jaw pressure on rings, bushings and thin covers and ask how it could contribute to a condition in which a bore looks round in soft jaws and becomes oval in the free state. One candidate action is to use functional gauges for repetitive mating features; however, its value must be demonstrated through bearing or sliding fit at the stated operating condition. Distinguish a dimensional nonconformance from a measurement-access or datum-alignment problem. Also consider the commercial effect of fit and functional-gauge verification, because a technically sound route must be quoted with transparent assumptions. Escalate a trend at the warning limit instead of waiting for a rejected final result.
Frequently Asked Questions
Is Delrin the same as POM?
Delrin is a trade name associated with acetal homopolymer. POM also includes copolymer grades, so the exact material should be specified. Confirm the project-specific answer from the controlled drawing and the actual material condition.
Can POM be polished after machining?
Surface improvement is possible, but any secondary method must be checked against size, edge definition and function. The general rule does not replace a feasibility review of the complete geometry and acceptance method.
Why does a POM bore become oval?
Jaw pressure, thin wall geometry, residual stress or heat can all contribute. The general rule does not replace a feasibility review of the complete geometry and acceptance method.
Does POM absorb water?
POM generally absorbs less moisture than many engineering plastics, but final dimensions still depend on temperature, grade and geometry. Final acceptance depends on the stated datum, delivered state and inspection approach.
Get an Engineering Review
Send the exact POM grade, model, drawing and mating requirements for a practical machining and inspection review. When the model and drawing are ready, use request a machining review and include the material, quantity, finish and inspection requirements.
For a review of Delrin CNC machining, send the native CAD model, controlled drawing, material specification, quantity, finishing route and required acceptance records. SAMSHION’s engineering team can return project-specific DFM questions and documented quotation assumptions before production begins.
