A weld line forms when separated polymer flow fronts meet and do not fully knit into a uniform structure or surface. Holes, cores, inserts, changes in wall thickness and multiple gates make some convergence unavoidable.
The engineering task is not simply to promise that the line will disappear. It is to predict where it will form, understand whether the local function tolerates it, improve the conditions at reunion and define how appearance or strength will be accepted.
Scope, Search Intent and Technical Boundary
This article diagnoses flow-front convergence in molded plastics. It does not duplicate the gate-design article, which focuses on gate type and location as the primary decision. For an additional authoritative reference, consult Autodesk weld and meld line result guidance.
The scope is practical planning for injection molding weld lines, not a substitute for a controlled drawing or a project-specific supplier review.
Key Takeaways
- Map flow-front splits before tool release.
- Keep critical weld lines away from high-stress and controlled cosmetic regions.
- Treat venting and trapped gas as part of weld-line quality.
- Review resin, fillers and process window before changing only temperature or speed.
- Validate structural concern with representative molded samples and appropriate testing.
How Weld and Meld Lines Form
A flow front cools and develops a skin as it travels; the meeting angle, temperature, pressure and trapped air influence the resulting interface. For the corresponding manufacturing decision and capability context, consult SAMSHION’s injection molding services.

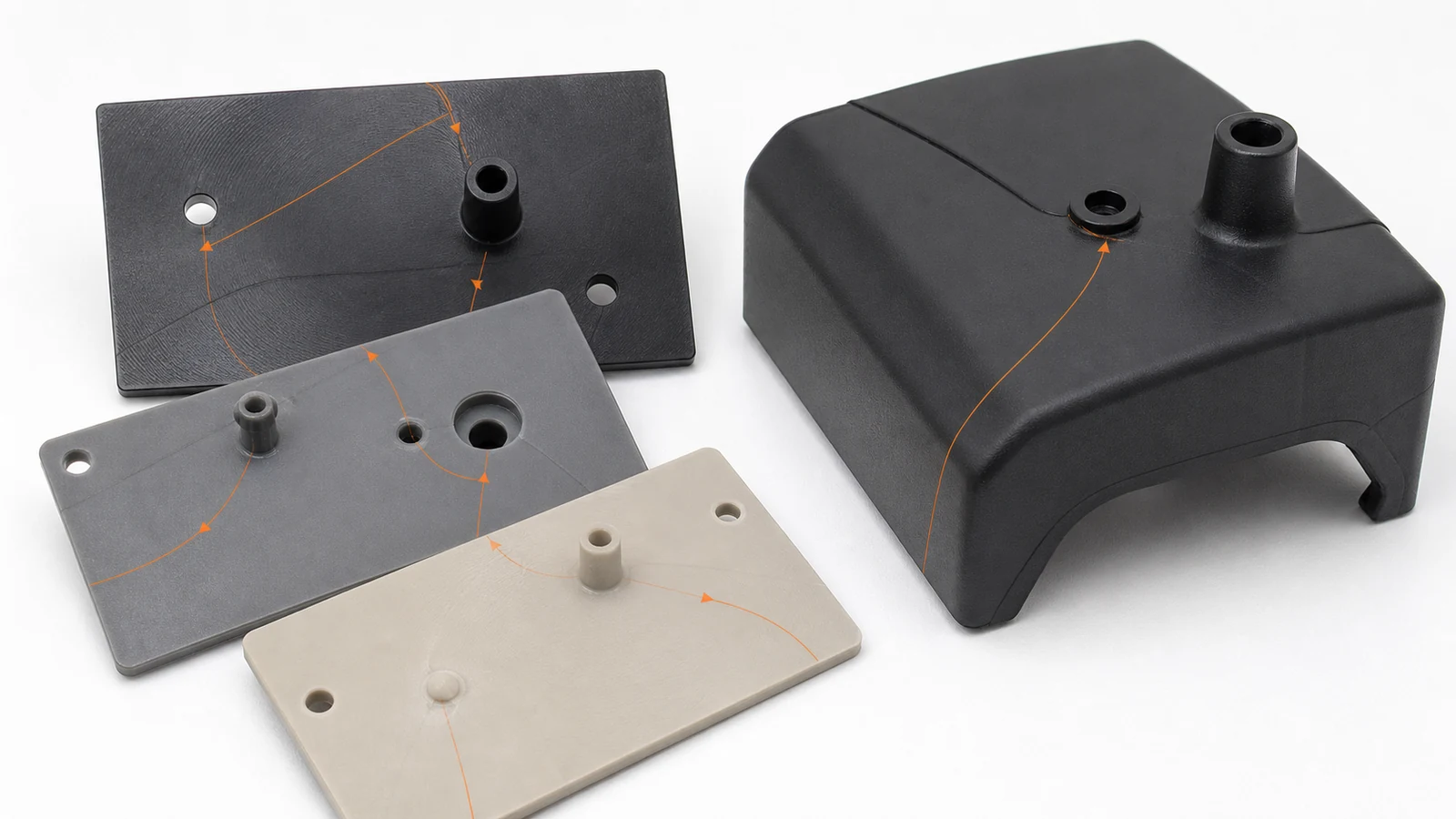

Predict Lines around Holes, Cores and Inserts
Polymer divides around obstacles and reunites downstream, making geometry and gate location inseparable from the line position. For the corresponding manufacturing decision and capability context, consult SAMSHION’s injection molding shrinkage guide.
Distinguish Cosmetic and Structural Risk
A visible line may be acceptable on a hidden cover but unacceptable across a snap arm, pressure boundary or painted Class-A surface. For the corresponding manufacturing decision and capability context, consult SAMSHION’s overmolding production guide.
Improve Position and Knit Quality
Gate location, runner balance, wall transitions, venting and the validated processing window can shift or strengthen the convergence. For the corresponding manufacturing decision and capability context, consult SAMSHION’s quality assurance.
Inspect and Test the Actual Requirement
Visual standards, sectioning and mechanical testing answer different questions and should be selected from the part function. For the corresponding manufacturing decision and capability context, consult SAMSHION’s surface finishing services.
Engineering Variables to Confirm Before Quotation
Meeting angle and temperature of the flow fronts
For injection molding weld lines, meeting angle and temperature of the flow fronts requires an explicit engineering decision. Resolve this point while the process route is still flexible. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. A clear answer prevents manufacturing convenience from replacing functional intent. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity.
Distance from the gate and available packing pressure
For injection molding weld lines, distance from the gate and available packing pressure requires an explicit engineering decision. Use this requirement to frame the first technical review. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It influences whether the feature is produced and accepted before or after secondary finishing. Where two documents disagree, obtain a controlled clarification before releasing material.
Resin grade, fiber content and orientation
For injection molding weld lines, resin grade, fiber content and orientation requires an explicit engineering decision. Do not allow a default title-block tolerance to answer this question indirectly. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It may determine whether a flexible prototype route remains suitable for repeat production. If the customer cannot confirm it, state the working assumption and its commercial effect in writing. Available grades, stock forms and supplied conditions can be cross-checked against the plastic snap-fit design guide before quotation.
Venting at the convergence region
For injection molding weld lines, venting at the convergence region requires an explicit engineering decision. Treat this as an RFQ input, not a shop-floor surprise. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. It influences whether the feature is produced and accepted before or after secondary finishing. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity.
Wall transitions and local hesitation
For injection molding weld lines, wall transitions and local hesitation requires an explicit engineering decision. Connect this variable to the mating or sealing function it protects. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. A clear answer prevents manufacturing convenience from replacing functional intent. If the customer cannot confirm it, state the working assumption and its commercial effect in writing.
Load direction relative to the weld line
For injection molding weld lines, load direction relative to the weld line requires an explicit engineering decision. Reconcile the model, drawing and purchase specification at this point. Ask which function depends on it, which datum or material state establishes it, and at what production stage it will be accepted. Its interpretation changes datum selection, setup count and verification effort. Record the agreed interpretation beside the revision so later orders do not reopen the same ambiguity.
Failure Modes and Root-Cause Diagnosis
A line crosses a snap arm and becomes the first fracture location
A characteristic failure for injection molding weld lines occurs when a line crosses a snap arm and becomes the first fracture location. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Inspect a first-off part both before and after the relevant secondary operation. Run the corrected first article through the same final-state acceptance route as production parts.
Trapped gas creates burn or incomplete knitting
A characteristic failure for injection molding weld lines occurs when trapped gas creates burn or incomplete knitting. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Repeat the measurement with a second suitable method before rewriting the machining program. Correct the mechanism and then revalidate the complete functional relationship.
A process change moves the line onto a visible face
A characteristic failure for injection molding weld lines occurs when a process change moves the line onto a visible face. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Compare the blank, clamped part, released part and finished part to locate the stage where the error appears. If the cause remains uncertain, contain the lot and expand the trial before releasing more material.
A filled resin produces a cosmetically acceptable but mechanically weak interface
A characteristic failure for injection molding weld lines occurs when a filled resin produces a cosmetically acceptable but mechanically weak interface. The observation is evidence, not yet a root cause. Evaluate material behavior, support, cutter condition, programmed sequence and the measurement alignment as separate hypotheses. Compare the blank, clamped part, released part and finished part to locate the stage where the error appears. Run the corrected first article through the same final-state acceptance route as production parts.

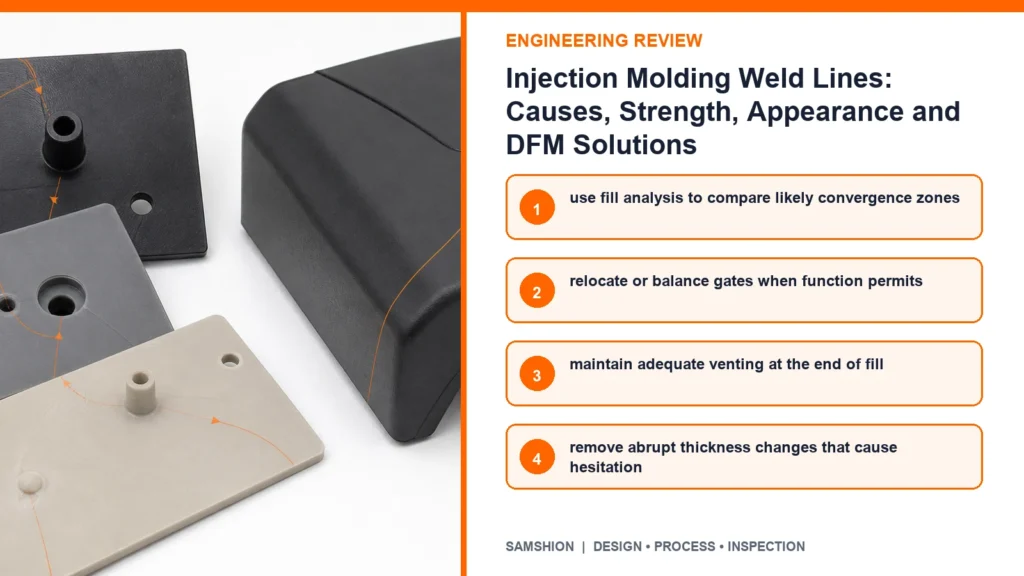

Process Controls for a Repeatable Result
Use fill analysis to compare likely convergence zones
A process plan for injection molding weld lines can control this risk by choosing to use fill analysis to compare likely convergence zones. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Review adjacent walls, threads, sealing lands and datums for unintended consequences. Repeat production should not depend on an operator remembering an undocumented exception.
Relocate or balance gates when function permits
A process plan for injection molding weld lines can control this risk by choosing to relocate or balance gates when function permits. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Use a short prototype trial first; formalize fixture, sampling and tool-life rules for repeat orders. Escalate a trend before it crosses the acceptance limit.
Maintain adequate venting at the end of fill
A process plan for injection molding weld lines can control this risk by choosing to maintain adequate venting at the end of fill. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Assign an operator check at the operation where the variable can still be corrected. Escalate a trend before it crosses the acceptance limit.
Remove abrupt thickness changes that cause hesitation
A process plan for injection molding weld lines can control this risk by choosing to remove abrupt thickness changes that cause hesitation. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Use a short prototype trial first; formalize fixture, sampling and tool-life rules for repeat orders. A stable process is demonstrated by evidence across parts, not by one favorable measurement.
Establish a material-specific molding window
A process plan for injection molding weld lines can control this risk by choosing to establish a material-specific molding window. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Assign an operator check at the operation where the variable can still be corrected. Remove the control if trials show that it adds handling without reducing the targeted variation.
Test a representative specimen when line strength is critical
A process plan for injection molding weld lines can control this risk by choosing to test a representative specimen when line strength is critical. The action is useful only when it targets a named source of variation. Before release, consider access, local stiffness, heat flow and the acceptance condition of neighboring features. Review adjacent walls, threads, sealing lands and datums for unintended consequences. Retain enough evidence to distinguish setup drift from material or tool variation.
Inspection Strategy and Acceptance Evidence
Line position against the approved visual boundary
Inspection of injection molding weld lines should explicitly address line position against the approved visual boundary. First define the characteristic, datum reference and part condition represented by the result. Measure in the delivered condition whenever coating, heat treatment or release affects the result. For variable geometry, show the measurement locations instead of reporting one unexplained value.
Surface notch, color shift or gloss change
Inspection of injection molding weld lines should explicitly address surface notch, color shift or gloss change. First define the characteristic, datum reference and part condition represented by the result. Document any special support, low-force probe or environmental stabilization requirement. Keep the measurement program and fixture revision with the inspection record.
Evidence of gas burn or incomplete fill
Inspection of injection molding weld lines should explicitly address evidence of gas burn or incomplete fill. First define the characteristic, datum reference and part condition represented by the result. Select contact geometry and measuring force that will not distort or bridge the feature. Identify whether each result is measured, visually verified or supported only by material documentation.
Mechanical performance across the actual load direction
Inspection of injection molding weld lines should explicitly address mechanical performance across the actual load direction. First define the characteristic, datum reference and part condition represented by the result. Sample the locations and depths where process behavior can genuinely change. Agree the acceptance method before machining when a supplier and customer could reasonably measure differently.
Consistency across cavities and processing trials
Inspection of injection molding weld lines should explicitly address consistency across cavities and processing trials. First define the characteristic, datum reference and part condition represented by the result. Use a functional gauge when fit matters more than a single isolated coordinate. For variable geometry, show the measurement locations instead of reporting one unexplained value. The available verification and reporting workflow is summarized in SAMSHION’s manufacturing materials guide.
Cost, Lead Time and Quotation Transparency
Flow simulation and additional trials
In a quotation for injection molding weld lines, flow simulation and additional trials can influence both lead time and total manufacturing cost. A prototype route may be economical once but unsuitable for a repeating order. Do not reduce price by silently omitting the requested acceptance evidence.
Tool changes to gates or vents
In a quotation for injection molding weld lines, tool changes to gates or vents can influence both lead time and total manufacturing cost. It may increase setup time, prove-out time or the risk allowance on expensive stock. Identify whether the commercial risk comes from capability, ambiguity or verification effort.
Material-specific testing
In a quotation for injection molding weld lines, material-specific testing can influence both lead time and total manufacturing cost. It can add material preparation, a dedicated cutter or a separate verification step. Compare flexible and dedicated production routes when order volume could justify either.
Cosmetic sorting or secondary finishing
In a quotation for injection molding weld lines, cosmetic sorting or secondary finishing can influence both lead time and total manufacturing cost. A prototype route may be economical once but unsuitable for a repeating order. Tie any cost-saving proposal to a controlled drawing revision.
A Practical Engineering Review Sequence
Start with the function protected by meeting angle and temperature of the flow fronts. Mark the related datums, interfaces and delivered-state requirements on the controlled drawing. The manufacturing review can then choose stock, setups and cutting access around that function instead of treating every dimension as equally critical.
Walk through the likely failure mechanism represented by this project: a line crosses a snap arm and becomes the first fracture location. Decide which evidence can reveal the problem earliest and which operation can still correct it. This ordering avoids discovering a predictable condition only after finishing or final inspection.
Use the first article to validate the proposed control, including the instruction to use fill analysis to compare likely convergence zones. The approval part must represent the intended material, fixture, program, secondary operations and measurement alignment. Feed the result back into the process record before releasing the balance of the order.
RFQ and DFM Checklist
- Native 3D CAD model plus a controlled 2D drawing for tolerances and notes
- Exact material grade, condition, stock preference and certification requirement
- Functional datums, mating components and genuinely critical characteristics
- Quantity, prototype or production intent, and expected repeat-order status
- Surface finish, coating, heat treatment, cleaning and marking requirements
- Inspection report, certificate, gauge or sampling requirements
- Any approved alternative geometry or process constraints
Additional Engineering Review Notes
An additional risk review should connect the drawing statement to the evidence available at final acceptance. For injection molding weld lines, examine meeting angle and temperature of the flow fronts and ask how it could contribute to a condition in which trapped gas creates burn or incomplete knitting. One candidate action is to maintain adequate venting at the end of fill; however, its value must be demonstrated through mechanical performance across the actual load direction. Preserve enough traceability to connect the observation to material lot, setup and program revision. Also consider the commercial effect of flow simulation and additional trials, because a technically sound route must be quoted with transparent assumptions. The resulting instruction should name the operation, responsible role, limit and retained record.
An additional risk review should connect the drawing statement to the evidence available at final acceptance. For injection molding weld lines, examine distance from the gate and available packing pressure and ask how it could contribute to a condition in which a process change moves the line onto a visible face. One candidate action is to remove abrupt thickness changes that cause hesitation; however, its value must be demonstrated through consistency across cavities and processing trials. Retain a marked image or inspection trace so the team is discussing the same location. Also consider the commercial effect of tool changes to gates or vents, because a technically sound route must be quoted with transparent assumptions. Keep the approved method connected to the fixture, program and inspection revision.
For this feature family, compare the intended function with the easiest available measurement and resolve any mismatch. For injection molding weld lines, examine resin grade, fiber content and orientation and ask how it could contribute to a condition in which a filled resin produces a cosmetically acceptable but mechanically weak interface. One candidate action is to establish a material-specific molding window; however, its value must be demonstrated through line position against the approved visual boundary. Identify which proposed cause would produce the observed direction and distribution of error. Also consider the commercial effect of material-specific testing, because a technically sound route must be quoted with transparent assumptions. Keep the approved method connected to the fixture, program and inspection revision.
For repeat orders, convert the first-article lesson into a revision-controlled production instruction. For injection molding weld lines, examine venting at the convergence region and ask how it could contribute to a condition in which a line crosses a snap arm and becomes the first fracture location. One candidate action is to test a representative specimen when line strength is critical; however, its value must be demonstrated through surface notch, color shift or gloss change. Distinguish a dimensional nonconformance from a measurement-access or datum-alignment problem. Also consider the commercial effect of cosmetic sorting or secondary finishing, because a technically sound route must be quoted with transparent assumptions. When the control affects fit or appearance, obtain approval through the drawing revision rather than email alone.
For repeat orders, convert the first-article lesson into a revision-controlled production instruction. For injection molding weld lines, examine wall transitions and local hesitation and ask how it could contribute to a condition in which trapped gas creates burn or incomplete knitting. One candidate action is to use fill analysis to compare likely convergence zones; however, its value must be demonstrated through evidence of gas burn or incomplete fill. Distinguish a dimensional nonconformance from a measurement-access or datum-alignment problem. Also consider the commercial effect of flow simulation and additional trials, because a technically sound route must be quoted with transparent assumptions. When the control affects fit or appearance, obtain approval through the drawing revision rather than email alone.
Frequently Asked Questions
Are weld lines always defects?
They are a process feature whose acceptability depends on location, appearance and structural function. Treat this as planning guidance and document any project assumption in the quotation.
Can higher melt temperature remove a weld line?
It may improve knitting within the resin’s validated window, but can create other defects and does not solve every geometry. The general rule does not replace a feasibility review of the complete geometry and acceptance method.
Why do holes create weld lines?
The flow divides around the obstacle and reunites downstream. Confirm the project-specific answer from the controlled drawing and the actual material condition.
Are meld lines stronger than head-on weld lines?
Meeting angle can influence quality, but resin, temperature, pressure, venting and fiber orientation also matter. Final acceptance depends on the stated datum, delivered state and inspection approach.
How should cosmetic weld lines be specified?
Use an agreed sample, visual zone map, lighting and viewing method rather than a vague note. Treat this as planning guidance and document any project assumption in the quotation.
Get an Engineering Review
Upload the native CAD model, controlled drawing, material specification, quantity and required finish for a project-specific review of injection molding weld lines.
For a review of injection molding weld lines, send the native CAD model, controlled drawing, material specification, quantity, finishing route and required acceptance records. SAMSHION’s engineering team can return project-specific DFM questions and documented quotation assumptions before production begins. When the model and drawing are ready, use upload your molded-part design and include the material, quantity, finish and inspection requirements.
