Precision Molds Manufacturing & Tooling Solutions
Samshion Rapid specializes in high-precision injection mold engineering, delivering custom tooling solutions tailored to your production needs. Combining our advanced CNC infrastructure with an expert design team, we ensure every mold is optimized for durability, cooling efficiency, and high-volume consistency.
- Expert solutions for both rapid prototyping and high-volume production molds.
- Complex geometries with tight tolerances of ±0.02mm.
- Full integration from DFM analysis to mold trial and final part delivery.
High-precision Custom Plastic Injection Molding Manufacturing
samshion provides reliable molding solution, strict quality control, on-time mass production, working with you from the first design all the way through full production.
samshion offer fully customized injection molding services based on your designs, specifications, and usage demands. we own and operate our own manufacturing facilities,which could fully support exclusive mold development, personalized shape, surface finish and batch volume customization.
samshion’s mold engineers could provide direct factory communication enables flexible adjustment to meet your unique product requirements.

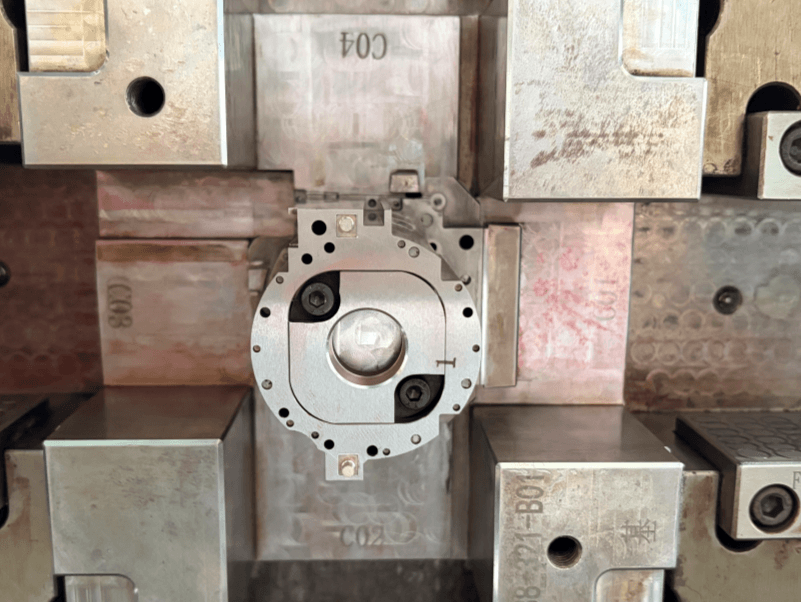

What Is a Production Injection Mold?
A production injection mold (also called a “production tool” or “production die”) is a precision-machined steel tooling fixture designed to produce plastic parts at high volume — typically 500,000 to several million cycles — with consistent dimensional accuracy and cosmetic repeatability.
Unlike prototype aluminum molds (Class 104) or bridge molds, production molds use fully hardened tool steel (H13, S136) with hot runner systems, automated ejection, and conformal cooling to minimize cycle time and per-part cost.
Samshion engineers all production molds in-house using Mold Flow simulation, EDM precision machining, and CMM verification before every T1 trial — ensuring the mold meets dimensional and cosmetic requirements on the first shots.
When to Use Production Molds
- Volume > 50,000 parts/year
- Per-part cost is the priority
- Consistent surface finish required
- Multiple colors or inserts needed
Production Mold Advantages
- Lowest per-part cost at volume
- Fastest cycle time (8–45 sec)
- Consistent part quality shot-to-shot
- Scalable cavity count (1 to 32×)
Dimensional Performance
- ±0.02mm tolerance (precision)
- Warpage control via Mold Flow
- CMM-verified before T1 trial
- Gate vestige < 0.3mm standard
Production Mold Types
We build all major mold configurations — from simple single-cavity cold runner tools to complex 32-cavity hot runner family molds with hydraulic side actions.
Single-Cavity Mold
Most Common
One cavity per mold base. Simplest construction, lowest tooling cost. Ideal when annual volumes are below 200K parts or part size/complexity prevents multi-cavity layouts.
Multi-Cavity Mold
Best Value
2, 4, 8, 16, or 32 identical cavities in a single mold base. Balanced hot runner manifold ensures equal fill and identical parts per shot. Drives the lowest per-part cost.
Family Mold
Versatile
Multiple related but different parts in one mold base (e.g., left/right halves of a housing). Reduces total tooling cost when parts ship together and share resin.
Insert Mold
Component Integration
Metal inserts (threads, contacts, shafts) placed in the mold before injection — plastic encapsulates the insert to create hybrid metal/plastic assemblies in one shot.
2-Shot / Overmold
Multi-Material
Two different materials (or colors) injected sequentially into the same mold. Hard substrate shot first; TPE/TPU overmold applied in same cycle. Eliminates secondary assembly.
Side Action / Lifter Mold
Complex Geometry
Hydraulic or spring-loaded side actions (cams) and internal lifters handle undercuts that cannot be straight-pulled. Enables complex external/internal features without secondary operations.
Our Common Materials for Injection Molds
In the world of precision manufacturing, the choice of mold material is the single most important factor determining project success. At Samshion Rapid, we don’t just select steel; we engineer solutions. The materials we use directly influence mold lifespan, machining precision, cost-efficiency, and the final aesthetic of your product.
Pre-Hardened Plastic Mold Steels
These steels are supplied pre-hardened (typically 28–40 HRC), so cavities can be machined directly without additional heat treatment. They offer low distortion and are the go-to choice for most molds.
Here are the most popular grades:
| Steel Grade | Hardness | Mold Life | Polish | Corrosion | EDM | Best For |
H13 Tool Steel | HRC 48–52 | 1,000,000+ | SPI A-2 | Moderate | Excellent | ABS, PP, PA6, POM, PC/ABS — all commodity & engineering resins |
S136 Stainless | HRC 50–54 | 2,000,000+ | SPI A-1 | Excellent | Good | PVC, POM, FR-ABS, transparent PC, medical-grade resins |
NAK80 Pre-hardened | HRC 37–43 | 300K–800K | SPI B-1 | Moderate | Best | ABS, PP, SAN — medium volume with texture requirements |
718H Pre-hardened | HRC 30–37 | 200K–500K | SPI B-2 | Good | Best | General commodity resins — medium volume, complex EDM geometry |
* Steel grade recommendation is provided free as part of every DFM review. Contact our engineers for guidance on your specific application.
Samshion provide Injection Molding Finishes & Post-Processing Options
SPI Finishes
SPI Finishes (SPI Mold Finishes) is a US-based mold surface texture standard established by the Society of the Plastics Industry (SPI). It classifies 12 grades into 4 categories (A/B/C/D), covering mirror gloss to coarse matte/texture, widely used for injection mold surface specification. Finishes include: SPI A-1, SPI A-2, SPI A-3, SPI B-1, SPI B-2, SPI B-3, SPI C-1, SPI C-2, SPI C-3, SPI D-1, SPI D-2, and SPI D-3
SPI Key Applications
- High-Gloss (A) : Medical devices, transparent parts, high-end consumer goods.
- Semi-Gloss (B) : Phone cases, remote controls, cosmetic containers.
- Matte (C) : Tool housings, electronic enclosures, office equipment.
- Textured (D) : Automotive trims, power tools, sports equipment.
SPI Core Categories & Features
Grade A (Glossy, Mirror Polish)
- A1/A2/A3: Diamond buffed, Ra 0.012–0.10μm
- Use: High-gloss cosmetics, lenses, luxury housings
Grade B (Semi-Gloss, Paper Polish)
- B1/B2/B3: 600–320 grit paper, Ra 0.05–0.20μm
- Use: Consumer electronics, home appliances
Grade C (Matte, Stone Polish)
- C1/C2/C3: 600–320 grit stone, Ra 0.20–1.0μm
- Use: Industrial parts, enclosures, non-reflective surfaces
Grade D (Textured, Dry Blast)
- D1/D2/D3: Glass bead/oxide blast, Ra 1.0–18.0μm
- Use: Anti-slip grips, hidden defects, automotive interiors
MoldTech Finishes( Mold Texturing)
Professional mold surface texturing treatment, creating diverse grain and matte patterns on cavity surfaces to enrich product appearance, cover defects and boost hand feel. Widely adopted for customized textured looks on plastic product exteriors. Our most common texture finishes include: MT11010, MT11020, and MT11030. Other textured finishes can be added by request.
Other Textures-VDI
VDI 3400 Surface Finish (commonly known as VDI surface finish) refers to the mold texture standard set by Verein Deutscher Ingenieure (VDI), the Society of German Engineers. It is mostly achieved via electrical discharge machining, delivering matte surfaces ranging from fine to coarse texture.
Samshion Manufacturing Process of mold
We don’t just build tools; we engineer production solutions through a specialized four-stage workflow:
DFM Analysis & Engineering
Before the first cut is made, Samshion Rapid provides a complimentary DFM (Design for Manufacturing) evaluation. We analyze wall thickness, draft angles, and gate locations to prevent defects like sink marks or warping, ensuring your design is optimized for high-yield production.
Precision CNC & EDM Machining
We carve the mold cavities with extreme precision. For intricate details that cannot be milled, Samshion Rapid employs Electrical Discharge Machining (EDM) to achieve sharp corners and complex textures with tolerances as tight as ±0.0254mm.
Multi-Slide & Specialized Tooling
For parts with undercuts or complex side-features, we design and manufacture multi-slide molds. This advanced tooling allows for automated part ejection, reducing cycle times and eliminating the need for expensive secondary operations.
Mold Trial & Validation
Every tool undergoes a rigorous T1 (first trial) at Samshion Rapid. We provide you with sample parts and a full dimension report to ensure the output perfectly matches your 3D CAD data before the mold is approved for mass production.
Frequently Asked Questions — Production Molds
What mold steel should I specify for my production mold?
H13 is the standard choice for most commodity and engineering resins at high volume — it offers the best combination of toughness, polishability, and cost. Specify S136 stainless when the resin is corrosive (PVC, POM, FR-ABS) or when SPI A-1 optical polish is required. NAK80 is best for molds requiring extensive texture etching or when faster delivery (no post-machining heat treatment) is the priority. Our engineers provide a free steel recommendation as part of every DFM review.
What is the difference between a hot runner and cold runner mold?
A cold runner mold channels molten plastic through a solidified runner that ejects with each shot — simple and low-cost, but wastes material proportional to runner weight. A hot runner system keeps the channels molten at all times, eliminating runner waste, reducing cycle time by 15–25%, and enabling better fill balance in multi-cavity molds. Hot runners add $1,500–5,000 to mold cost but typically pay back within 10,000–20,000 shots through material savings alone.
How many cavities should my production mold have?
The optimal cavity count balances injection machine clamp force, cycle time, mold cost, and required annual production volume. As a rough guide: 100K parts/year → 1–2 cavities; 500K parts/year → 4–8 cavities; 2M+ parts/year → 16–32 cavities. We run Mold Flow simulation to confirm the optimal layout and gate configuration before committing to the mold design. Over-cavitating adds unnecessary tooling cost; under-cavitating creates production bottlenecks.
How does Samshion's mold pricing compare to domestic US/EU toolmakers?
Our production mold pricing is typically 40–60% below equivalent US or European tooling — while using the same internationally recognized steel grades (H13, S136, NAK80), brand-name hot runner systems (Yudo, EWIKON), and delivering to the same SPI mold classification standards. Cost savings come from lower labor rates in Guangdong, China — not from compromising on material, process, or inspection standards. ISO 9001:2015 certification and full documentation are standard on every mold.
